Circular crusher valve

Short Description

Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Crusher Valves
Application: Crushing, discharging, air locking, and anti-blocking of caked bulk materials at silo outlets, discharge pipes, chutes, and pneumatic conveying lines
Product Type: Circular crusher valve

Back to Products

Product Detail

描述

Overview

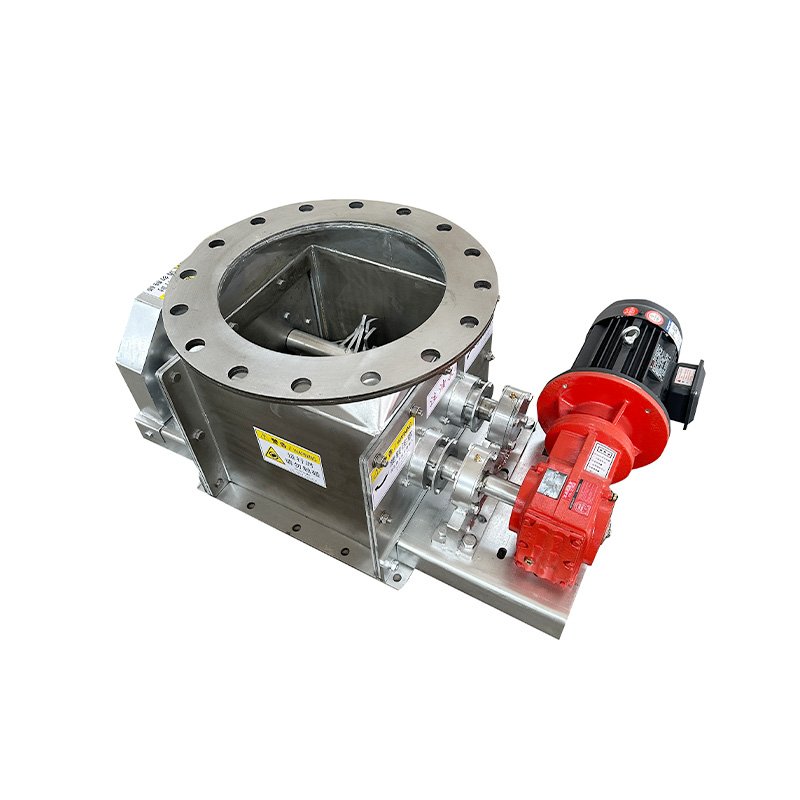

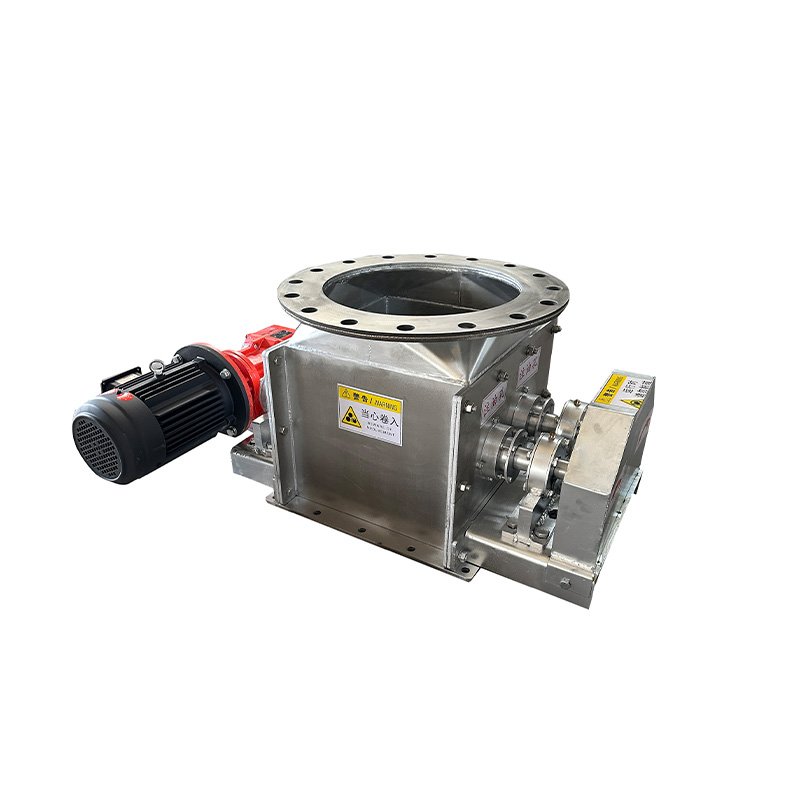

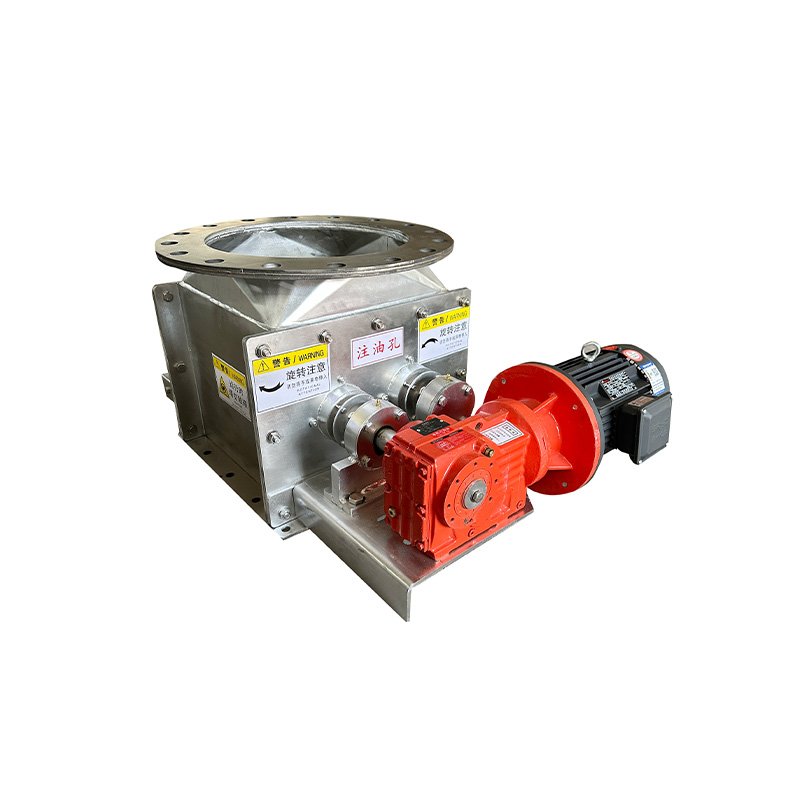

The Circular Crusher Valve is designed for crushing, discharging, air locking, and anti-blocking of caked bulk materials at the outlet of silos and conveying systems. It features a cylindrical housing with circular inlet and outlet flanges, allowing direct connection to round silos, discharge pipes, chutes, and pneumatic conveying lines.

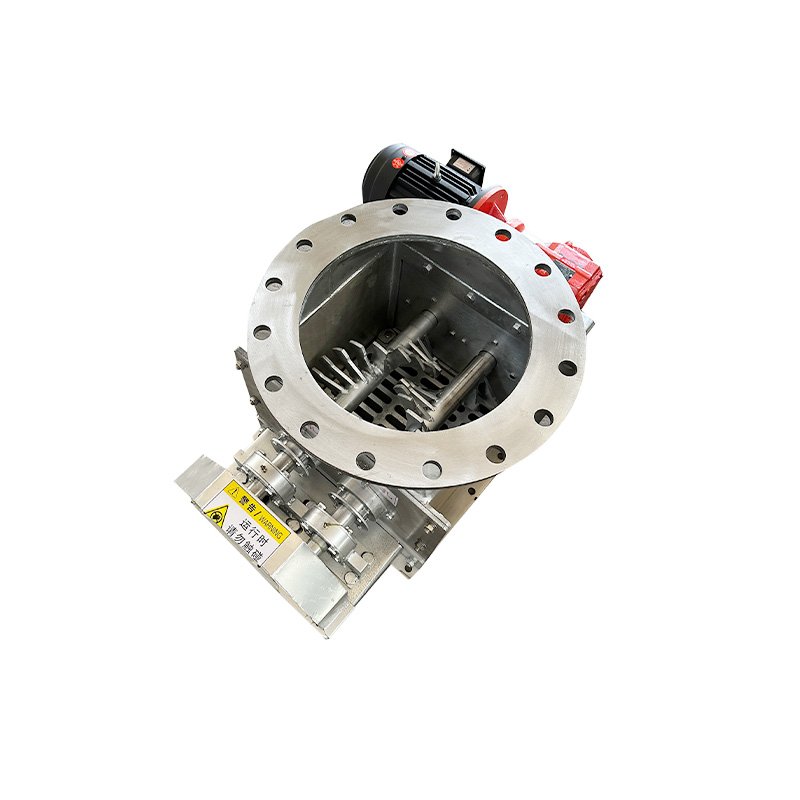

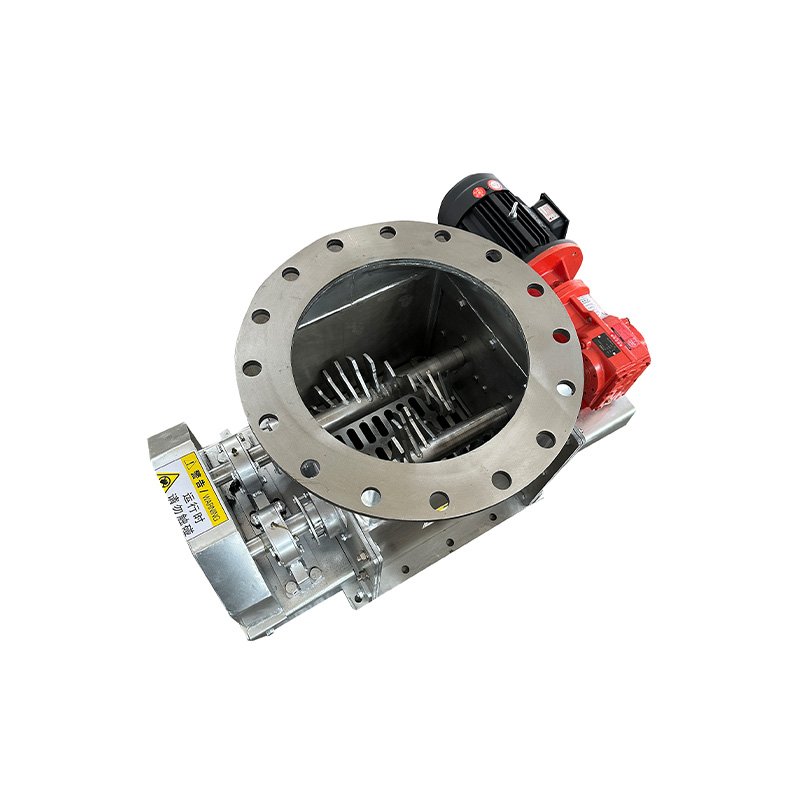

The equipment is driven by a motor and reducer to rotate the crushing rotor at low speed and high torque. Material entering the valve body is impacted, compressed, and sheared by the crushing claws. Qualified fine material passes through the internal screen ring, while larger lumps continue to be crushed, ensuring smooth discharge and stable operation.

Applications

Silo outlet lump breaking and discharge
Discharge pipe and chute anti-blocking systems
Pneumatic conveying line discharge points
Cement and building material powder systems
Power plant ash and mineral powder handling
Chemical powder and granular material systems
Fly ash, lime, and ground slag powder discharge
Bulk powder systems with caking or moisture sensitivity

Suitable Materials and Working Conditions Include

Cement
Fly ash
Mineral powder
Lime
Clay
Ground slag powder
Coal lumps and ore lumps
Caked gypsum and similar blocky bulk materials
Hot powders and calcined powder materials
Moisture-sensitive and easily caking powder materials
Pneumatic conveying systems under positive or negative pressure
Large-diameter silo bottom discharge applications

Technical Characteristics

Cylindrical housing with circular flanges for direct installation on round silos and pipelines
Low-speed high-torque crushing structure for impact, compression, and shear crushing
Internal screen ring for controlled discharge particle size
Uniform force distribution and compact overall structure
Good sealing performance with reduced dust leakage
Combined crushing, discharging, air locking, and anti-blocking functions
Smooth internal flow path with good material passage performance
Wear-resistant crushing claws and screen ring for long service life
Stable running performance with low vibration and low noise
Overload protection and anti-jamming capability for continuous discharge
Suitable for abrasive powders and harsh industrial operating conditions
Can be configured for high-temperature, explosive dust, and pneumatic conveying systems

Optional Configuration / Notes

Single-shaft, double-shaft, and heavy-duty structures can be selected according to material condition and required capacity.
Variable frequency speed control can be configured for process adjustment where required.
Anti-sticking coating can be used for hygroscopic and wet sticky materials.
High-temperature seals, stainless steel housing, and high-temperature bearings are available for hot powder applications.
Explosion-proof motor, explosion-proof grounding, isolation device, and enclosed rotor configuration are available for combustible dust systems.
High-precision sealing, air-lock rotor structure, and shaft-end mechanical seal can be configured for pneumatic conveying discharge service.
Model selection should be based on material type, lump size, nominal diameter, required throughput, discharge particle size, and site conditions.

Technical Parameters And Main Performance Indicators

Main Structure

Component	Description
Valve Body	Cylindrical housing with circular upper and lower flanges
Crushing Rotor	Main shaft with spoke structure installed in the center of the housing
Crushing Claws	Wear-resistant elements mounted on the rotor for impact and shear crushing
Screen Ring	Cylindrical screen plate around the rotor for discharge size control
Drive Section	Motor and reducer providing low-speed high-torque power
Bearing and Sealing	Bearing support at both shaft ends with shaft-end sealing to reduce dust leakage
Base	Support structure for overall installation and fixing

Typical Working Condition Reference

Working Condition	Typical Material	Nominal Diameter	Capacity	Motor Power	Speed	Output Size	Key Configuration
Cement, fly ash, and fine powder	Cement, fly ash, mineral powder	DN600-DN1000	600-1500 m3/h	7.5-22 kW	15-25 r/min	5-40 mm	Single shaft, standard sealing, carbon steel housing
Hygroscopic and wet sticky lumps	Lime, clay, ground slag powder	DN800-DN1200	500-1200 m3/h	11-30 kW	10-20 r/min	5-50 mm	Double shaft, reinforced claws, anti-sticking coating, variable frequency speed control
Hard lumps and large blocks	Coal lumps, ore lumps, caked gypsum	DN800-DN1200	400-1000 m3/h	15-37 kW	10-18 r/min	10-60 mm	Double shaft, heavy-duty structure, reinforced crushing teeth, overload protection
Hot powder and calcined powder	High-temperature mineral powder, clinker powder	DN600-DN1000	400-1200 m3/h	7.5-22 kW	15-25 r/min	10-40 mm	High-temperature sealing, stainless steel housing, high-temperature bearing
Explosive dust systems	Coal dust, combustible powders	DN600-DN1000	500-1300 m3/h	11-30 kW	15-25 r/min	5-40 mm	Explosion-proof motor, explosion-proof grounding, isolation device, enclosed rotor
Positive and negative pressure conveying	Pneumatic conveying system discharge	DN600-DN1200	600-1600 m3/h	7.5-30 kW	15-30 r/min	5-40 mm	High-precision sealing, air-lock rotor structure, shaft-end mechanical seal
Large-diameter silo bottom service	Large cement silos, ore bins	DN1000-DN1400	1200-1800 m3/h	18.5-37 kW	12-20 r/min	5-50 mm	Single or double-shaft heavy-duty structure, reinforced housing, variable frequency speed control

Note: Final model configuration should be confirmed according to material characteristics, required output size, air-lock requirement, conveying pressure, and installation connection size.
