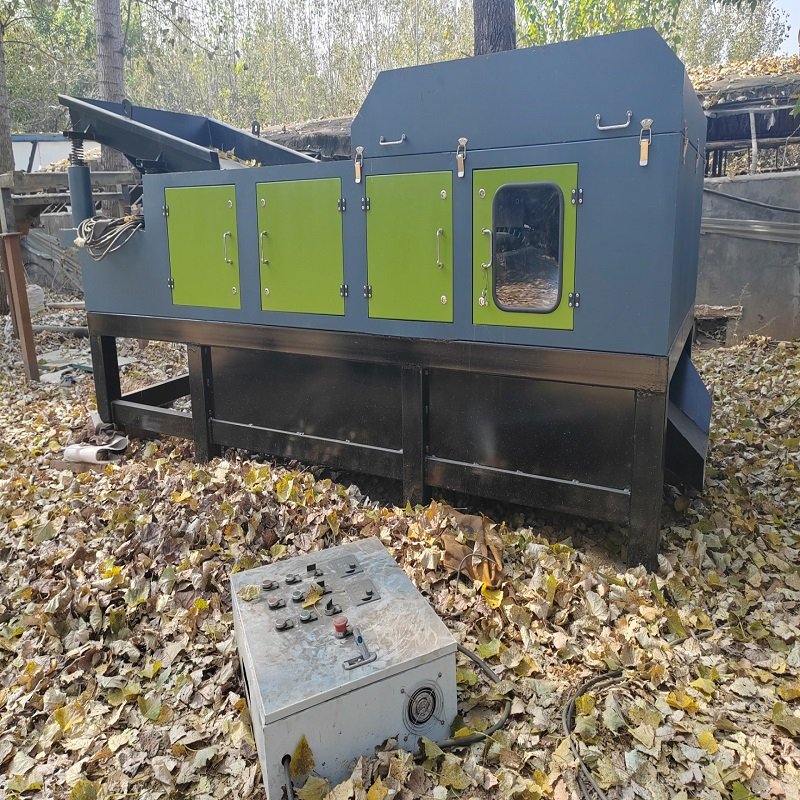

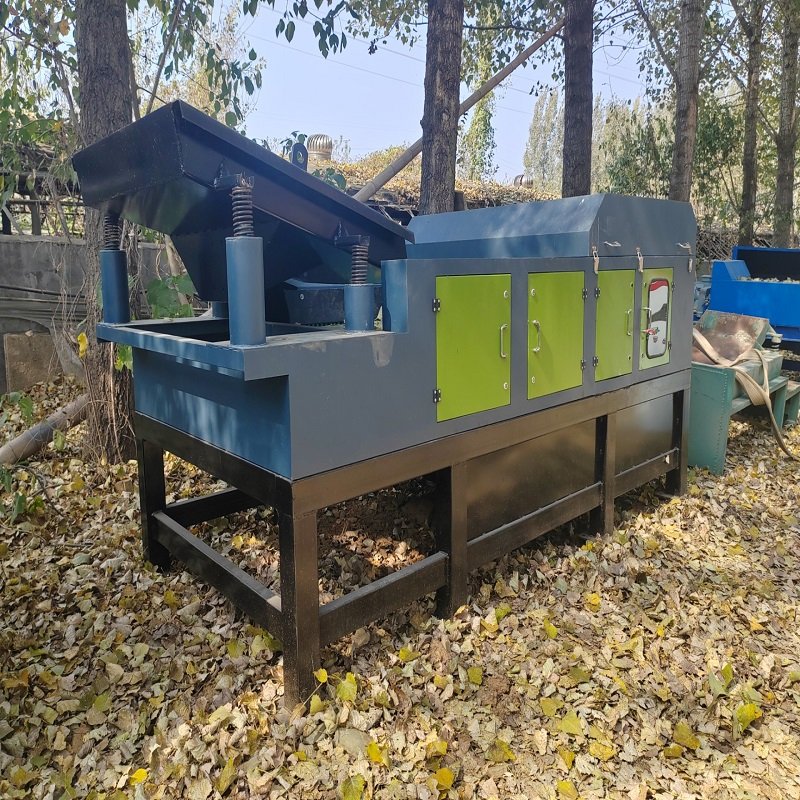

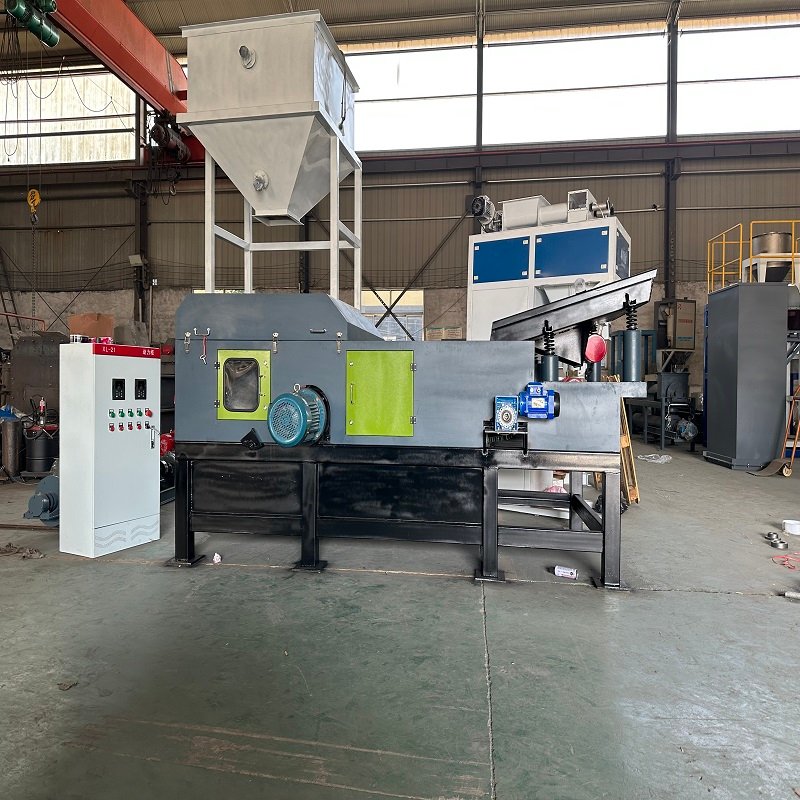

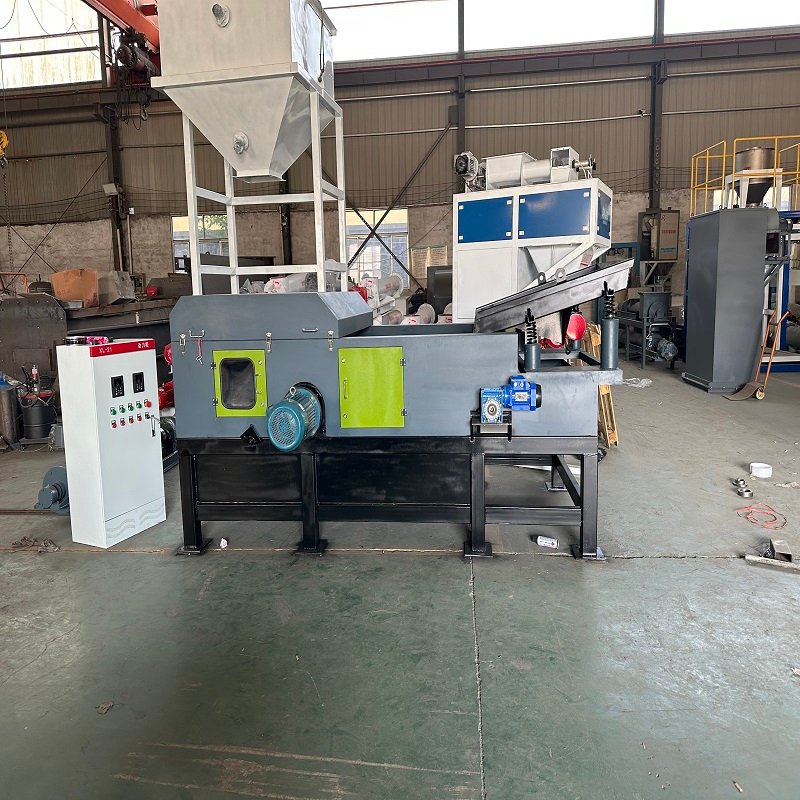

CSECS Series Eddy Current Separator
Short Description
Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Metal Separation Equipment
Application: Separation of non-ferrous metals such as aluminum, copper, and zinc from mixed materials in recycling and sorting lines
Product Type: Eddy current separator
描述
Overview
The CSECS Series Eddy Current Separator is designed to separate non-ferrous metals from mixed materials by using the eddy current separation principle. When non-ferrous metal particles pass through an alternating magnetic field at a certain speed, induced eddy currents generate a repulsive force that throws the metal away from the material stream, enabling efficient separation.
This equipment is suitable for sorting aluminum, copper, zinc, and other non-ferrous metals from mixed waste streams. It is designed for continuous operation and can be used in recycling, resource recovery, and material processing lines that require stable separation performance and convenient operation.
Applications
- Non-ferrous metal recovery lines
- Scrap metal sorting systems
- Recycling plant separation lines
- Mixed waste material processing
- Industrial material recovery systems
- Resource recycling and secondary metal recovery
Suitable Materials and Working Conditions Include
- Aluminum fragments and particles
- Copper fragments and particles
- Zinc-containing non-ferrous metal materials
- Mixed materials containing non-magnetic non-ferrous metals
- Materials with different particle sizes and shapes
- Continuous sorting and recycling operations
Technical Characteristics
- Efficient separation of non-magnetic non-ferrous metals from mixed materials
- Non-contact separation based on induced eddy current principle
- Suitable for different particle sizes, shapes, and material conditions
- Automatic control system for convenient operation
- No chemical agents or water required during separation
- Stable working performance for long-term continuous operation
- Applicable to multiple material sorting and recovery industries
Optional Configuration / Notes
- Model selection should be based on required throughput, belt width, and material characteristics.
- Actual separation performance may vary according to particle size distribution, feeding uniformity, and material composition.
- Detailed configuration, layout drawing, and electrical specification are available upon request.
- Final equipment selection should be confirmed according to the actual sorting line and installation conditions.
Technical Parameters And Main Performance Indicators
Main Technical Parameters
| Model | Belt Width | Capacity | Overall Dimensions | Separation Drum Power | Magnetic Drum Power | Weight |
|---|---|---|---|---|---|---|
| CSECS-40 | 400 mm | 1-4 m3/h | 2885 x 1500 x 1695 mm | 1.1 kW | 4 kW | 1200 kg |
| CSECS-60 | 600 mm | 4-6 m3/h | 2885 x 1700 x 1695 mm | 1.1 kW | 4 kW | 1350 kg |
| CSECS-80 | 800 mm | 6-8 m3/h | 2950 x 1900 x 1695 mm | 1.5 kW | 5.5 kW | 1500 kg |
| CSECS-100 | 1000 mm | 8-10 m3/h | 2950 x 2100 x 1695 mm | 1.5 kW | 7.5 kW | 1900 kg |
| CSECS-120 | 1200 mm | 10-12 m3/h | 2885 x 2400 x 1695 mm | 1.5 kW | 7.5 kW | 2100 kg |
Note: Final model selection should be based on material composition, required throughput, and the actual sorting line configuration.
