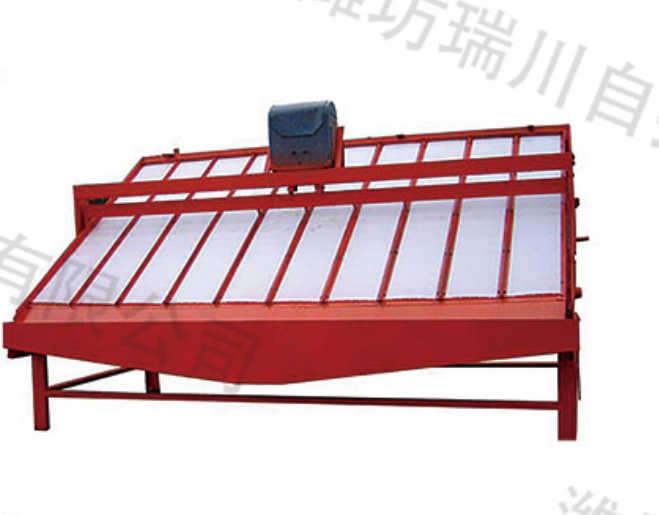

DGS High Frequency Vibrating Screen
Short Description
Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Vibrating Screen, Screening Equipment, Industrial Separation Equipment
Application: Fine screening and product classification in mining, building materials, transportation, energy, chemical, and related industries
Product Type: High Frequency Vibrating Screen
描述
The DGS High Frequency Vibrating Screen is designed for fine material screening and product classification in industrial processing lines.
It features high vibration frequency, low amplitude, high screening efficiency, and a simple structure for convenient installation and maintenance.
Overview
This high frequency vibrating screen is widely used for product screening in mining, building materials, transportation, energy,
chemical, and related industries. Based on the supplied information, the equipment is intended for fine screening applications
requiring efficient separation performance, stable vibration frequency, and durable screen media.
Applications
Suitable materials and working conditions include
- Fine screening applications with screen aperture options of 0.1 mm, 0.15 mm, 0.2 mm, 0.3 mm, and 0.5 mm
- Separation particle size range of 0.074-0.3 mm
- Processing lines requiring high frequency and low amplitude screening
- Applications requiring screening efficiency with compact equipment structure
- Installations using screen surface inclination from 45° to 60°
- Operating conditions requiring vibration frequency of 3000 r/min
Technical Characteristics
Optional Configuration / Notes
- Screen media can be selected as stainless steel mesh or polymer wear-resistant screen plate.
- Model selection should be based on required processing capacity, aperture size, and installation conditions.
- Please contact us for detailed specifications on feed conditions, structure material, support frame, and electrical configuration.
Technical Parameters And Main Performance Indicators
| Model | Listed Size (mm) | Screen Aperture (mm) | Separation Particle Size (mm) | Processing Capacity (t/h) | Screen Surface Inclination | Vibration Frequency (r/min) | Effective Power (kW) |
|---|---|---|---|---|---|---|---|
| DGS-6 | 400 × 1200 × 6 400 × 1500 × 6 |
0.1 / 0.15 / 0.2 / 0.3 / 0.5 | 0.074-0.3 | 5-7 | 45-60 | 3000 | 0.25 |
| DGS-10 | 400 × 1200 × 10 400 × 1500 × 10 |
0.1 / 0.15 / 0.2 / 0.3 / 0.5 | 0.074-0.3 | 7-10 | 45-60 | 3000 | 0.35 |
| DGS-15 | 400 × 1200 × 15 400 × 1500 × 15 |
0.1 / 0.15 / 0.2 / 0.3 / 0.5 | 0.074-0.3 | 10-15 | 45-60 | 3000 | 0.45 |
