ICS Series Electronic Belt Scale
Short Description
Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Belt Scales
Application: Continuous weighing and flow measurement of bulk materials on belt conveyors in industrial conveying lines
Product Type: Electronic belt scale
描述
Overview
The ICS Series Electronic Belt Scale is designed for continuous weighing and flow measurement of bulk materials on belt conveyors. It is an online weighing solution for conveyor systems and is widely used in process lines that require stable measurement, continuous operation, and convenient integration with plant control systems.

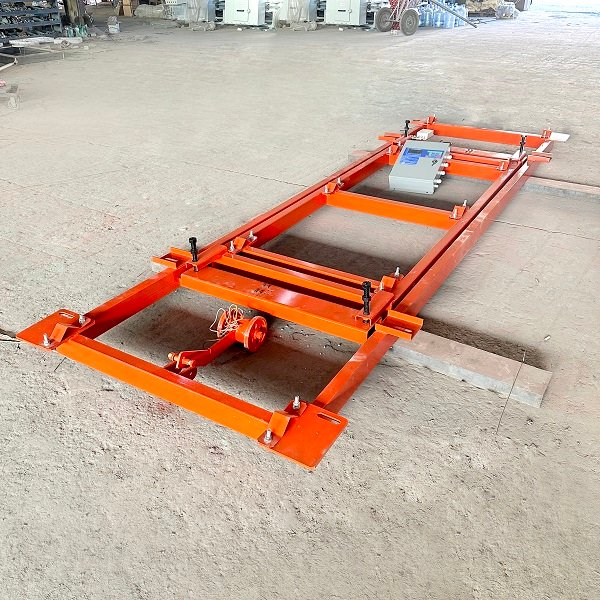

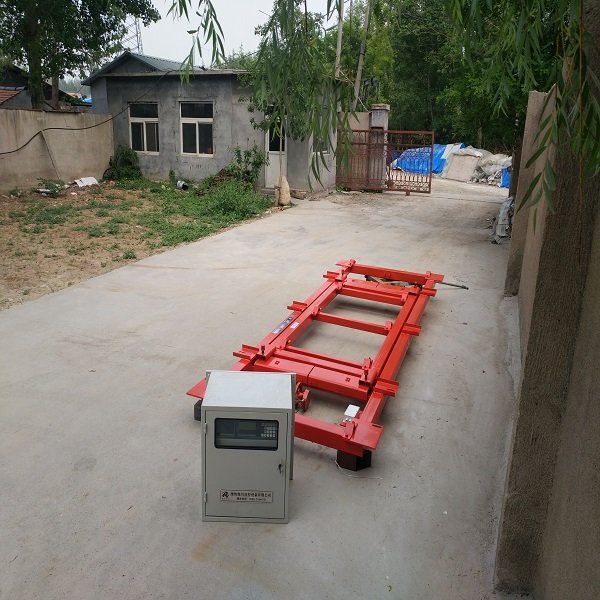

The system is composed of a weigh bridge, load cells, indicator or integrator, and related signal cables. When required by the conveyor configuration, a speed sensor and speed wheel can also be added. During operation, the belt load signal and belt speed signal are transmitted to the integrator, which calculates instantaneous flow rate and cumulative total continuously.
Applications
- Building materials conveying lines
- Metallurgy material handling systems
- Power plant bulk material measurement
- Chemical industry conveying processes
- Coal handling and transfer systems
- Mining conveying lines
- Port bulk loading and unloading systems
Suitable Materials and Working Conditions Include
- Bulk materials conveyed on standard belt conveyors
- Dry bulk materials requiring continuous online measurement
- Applications with belt inclination from 0 to 18 degrees
- Conveyor belt widths from 400 to 2200 mm
- Belt speeds from 0.1 to 4 m/s
- Conventional industrial environments
- Acid, alkali, salt, and atmospheric corrosion environments
Technical Characteristics
- Simple structure with stable weighing performance
- Accurate continuous measurement for belt conveyor applications
- Fast zero recovery and stable force transmission
- Rugged weigh bridge with good impact resistance
- No moving parts on the weighing frame for reduced maintenance

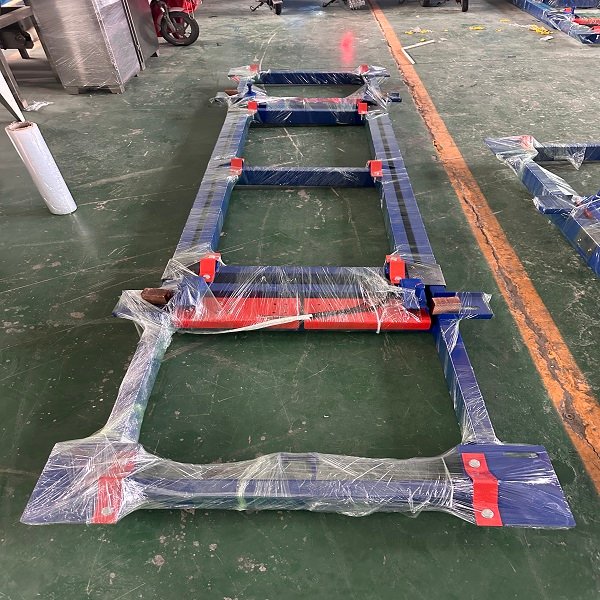

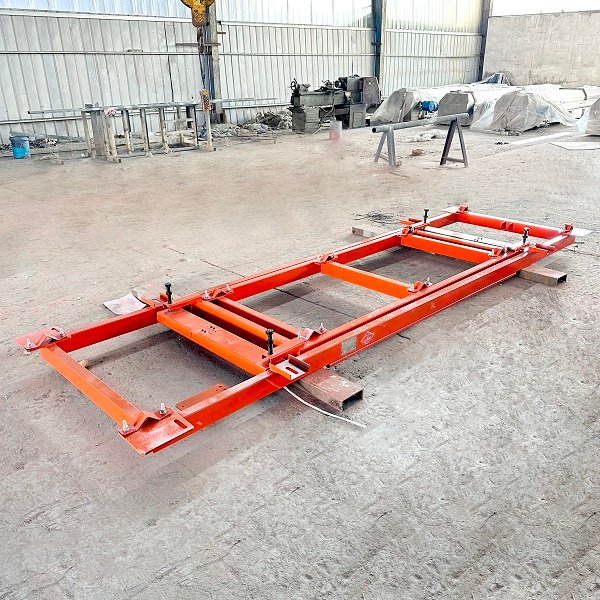

- Multiple weigh frame options, including single-idler, double-idler, three-idler, and four-idler structures
- Multiple calibration methods and output interfaces for control integration
- Suitable for long-term industrial operation
Optional Configuration / Notes
- Double-idler weigh frames are commonly used because they are convenient to install and maintain.

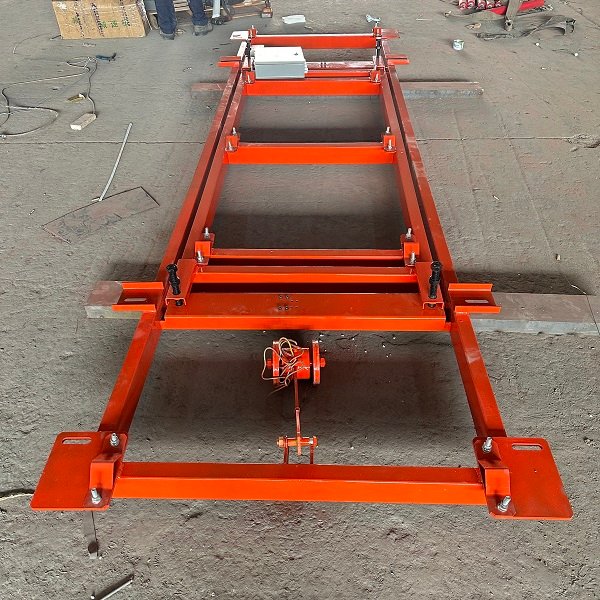

- When the conveyor operates with variable speed control, a speed sensor and speed wheel should be added.
- Speed measurement can be configured by speed wheel or rotary encoder according to the project requirement.
- Actual measurement accuracy may vary according to weigh frame type, installation quality, conveyor condition, and calibration method.
- Detailed layout drawing, control configuration, and final output interface should be confirmed before ordering.
Technical Parameters And Main Performance Indicators
Key Technical Indicators
| Item | Specification |
|---|---|
| Measurement Accuracy | +/- 0.5% to +/- 1.0% |
| Dynamic Cumulative Error | 20A system better than +/- 0.5% |
| Weighing Capacity | Up to 6000 t/h |
| Belt Speed | 0.1 to 4 m/s |
| Belt Width | 400 to 2200 mm |
| Belt Inclination | 0 to 18 deg |
| Working Mode | Continuous |
| Recommended Conveyor Center Distance | At least 3 m between inlet and outlet centers |
Sensor and Integrator Performance
| Item | Specification |
|---|---|
| Load Cell Nonlinearity | Less than 0.05% of rated output |
| Load Cell Repeatability | Less than 0.03% of rated output |
| Load Cell Hysteresis | Less than 0.03% of rated output |
| Load Cell Excitation | 10 VDC |
| Speed Sensor Frequency Range | 0 to 1.2 kHz |
| Integrator Accuracy | Better than 0.05% |
| Power Supply | 220 V, 50 Hz +/- 2% |
| Current Output | 4 to 20 mA or 0 to 20 mA proportional to flow |
| Communication | RS485 or RS232C optional |
| Matched Integrator | RC403-PD |
Model Reference Table
| Model | Belt Width | Accuracy | Capacity Range | Belt Inclination | Load Cells | Weighing Idlers |
|---|---|---|---|---|---|---|
| ICS-400 | 400 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
| ICS-500 | 500 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
| ICS-600 | 600 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
| ICS-650 | 650 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
| ICS-800 | 800 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
| ICS-1000 | 1000 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
| ICS-1200 | 1200 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
| ICS-1400 | 1400 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
| ICS-1600 | 1600 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
| ICS-1800 | 1800 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
| ICS-2000 | 2000 mm | +/- 0.5% | 1 to 6000 t/h | Up to 18 deg | 3 | 2 / 3 / 4 optional |
Note: Final model selection should be confirmed according to belt width, conveyor speed, installation condition, weigh frame type, and required control interface.
