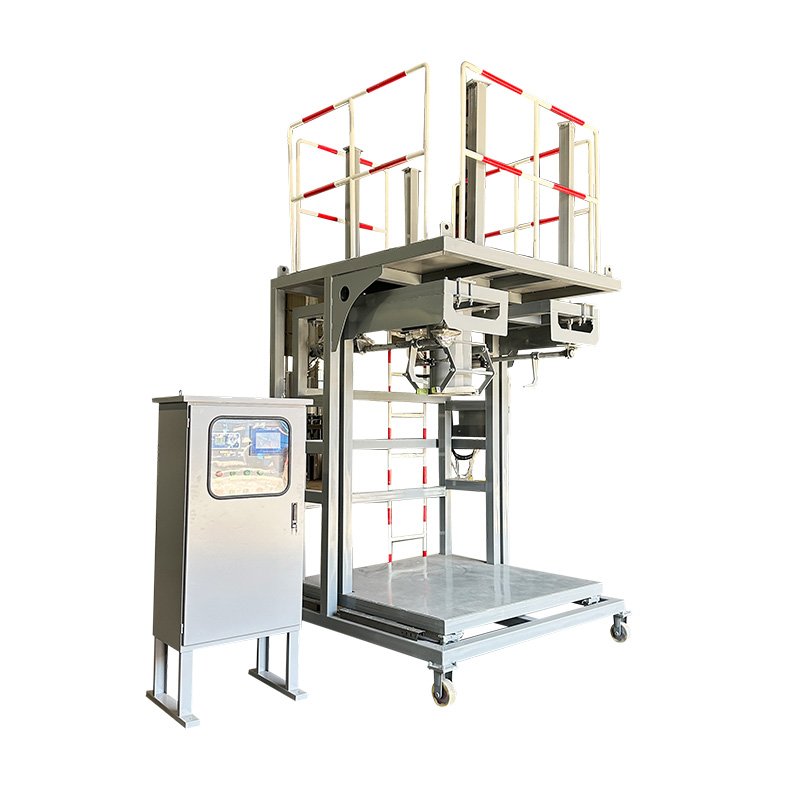

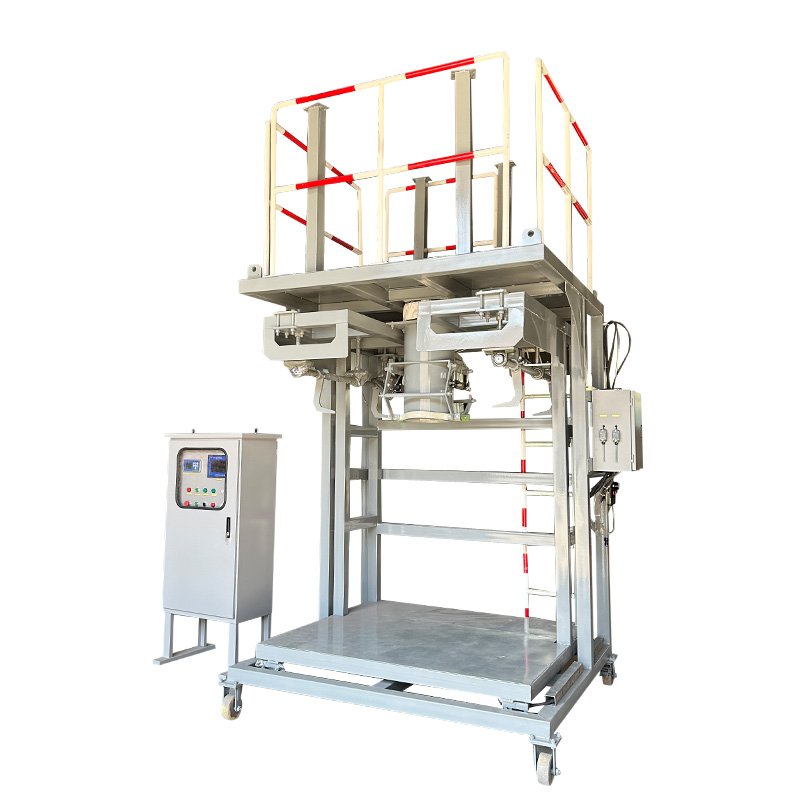

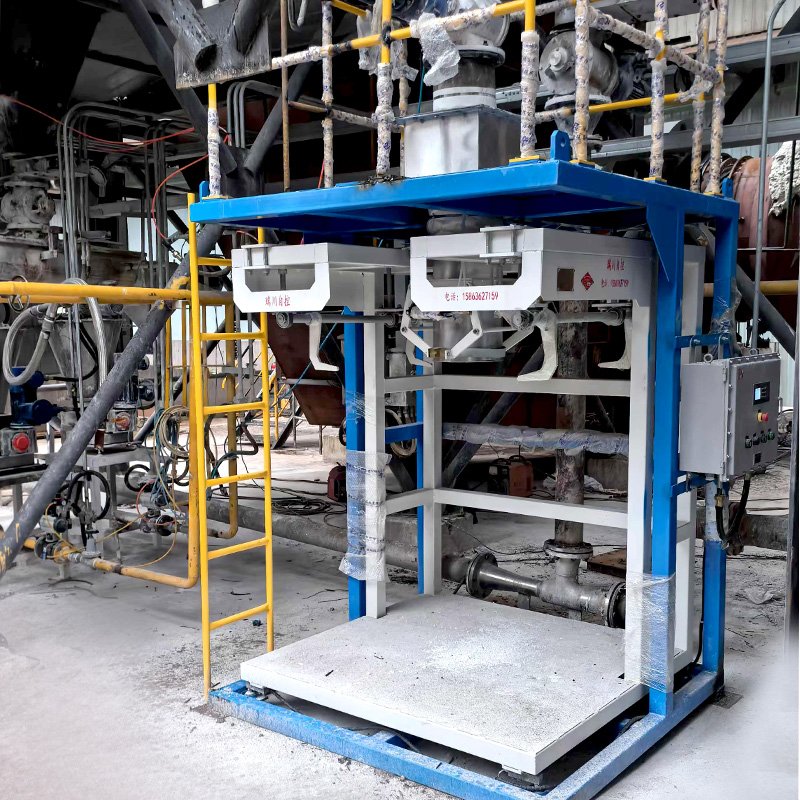

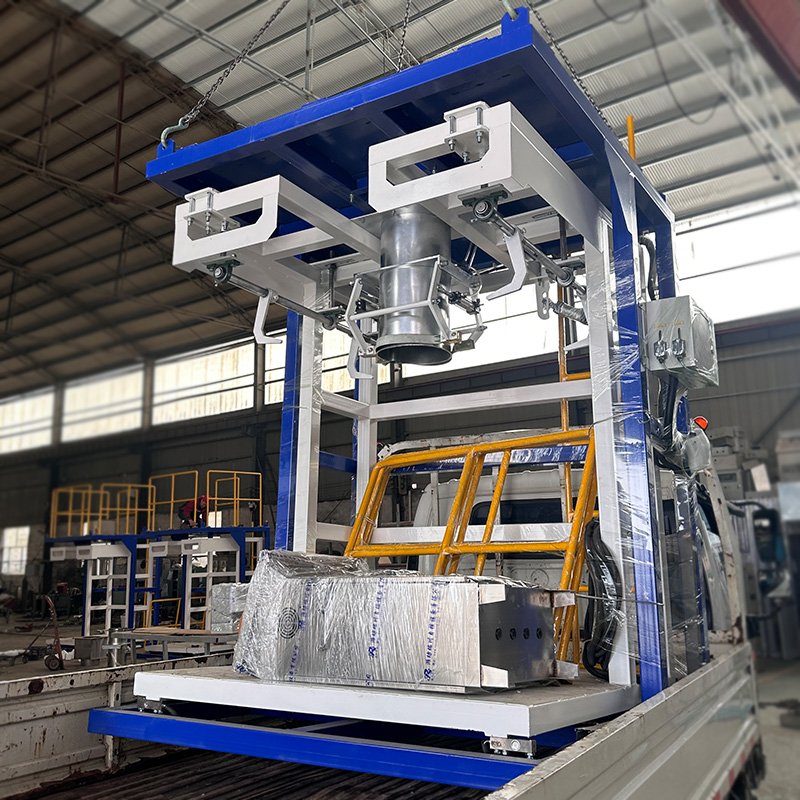

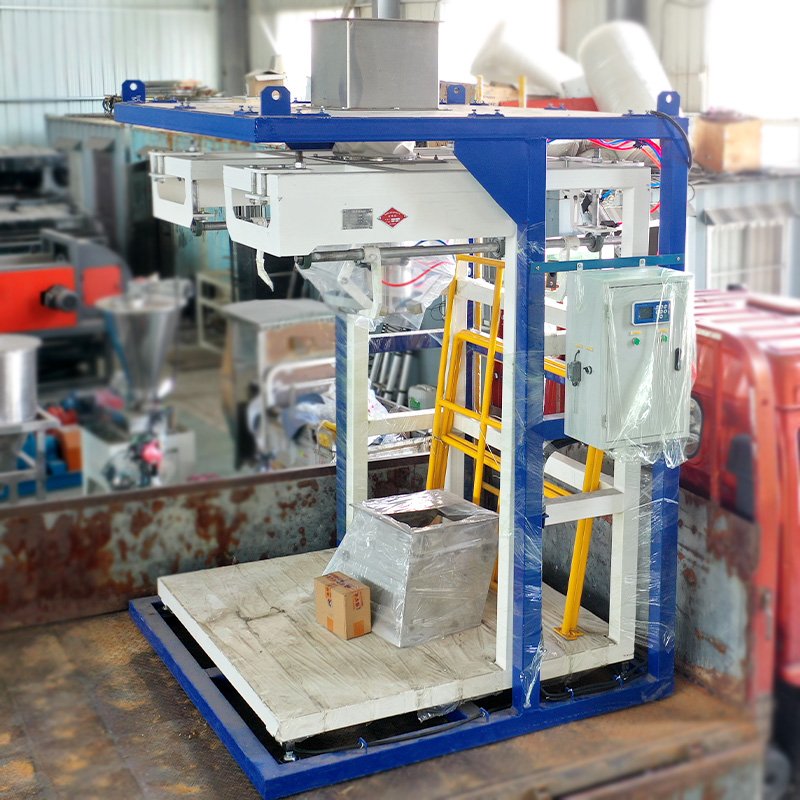

JDS-1000 Lower Platform Jumbo Bag Packing Machine
Short Description
Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Jumbo Bag Packing Machine
Application: Bulk bag filling and weighing for powder, granule, flake, and other bulk materials in chemical, feed, fertilizer, grain, metallurgy, and related industries
Product Type: Lower platform weighing FIBC packaging machine
描述
JDS-1000 Lower Platform Jumbo Bag Packing Machine
Overview
The JDS-1000 Lower Platform Jumbo Bag Packing Machine is designed for quantitative weighing and filling of jumbo bags for powders, granules, flakes, and other bulk materials. It is suitable for industrial packaging lines that require stable weighing performance, reliable bag handling, and flexible integration with upstream feeding systems.
This machine adopts a lower platform weighing structure and integrates weighing, feeding control, bag clamping, inflation, and discharge functions into one system. According to the provided product information, bag placement is manual, while fast feeding, slow feeding, quantitative filling, bag clamping, and bag release can be automatically controlled.
Applications
- Chemical raw material packaging lines
- Feed production and bulk bag filling systems
- Fertilizer packaging operations
- Grain and agricultural material handling lines
- Metallurgical material packaging
- Petrochemical and plastic industry applications
- New energy material bulk bag filling
- Industrial bulk solid conveying and packaging systems
Suitable materials and working conditions include:
- Powder materials
- Granular materials
- Flake materials
- Blocky bulk materials
- Fine powder and ultrafine powder materials
- Large-volume bulk material packaging operations
- Production lines requiring weighing accuracy and dust control
- Sites requiring vacuum, screw, or belt feeding integration
Technical Characteristics
- Lower platform electronic weighing structure
- Digital parameter setting and weighing adjustment
- Weight accumulation display function
- Automatic tare function
- Automatic zero calibration
- Automatic drop correction
- Fast and slow feeding control
- Stepless speed regulation during filling
- PLC-based control system
- Pneumatic bag clamping mechanism
- Inflating and air return function
- Dust-proof and dust-removal design
- Communication interface for monitoring and management
- Belt conveyor discharge structure for easy cleaning
Optional Configuration / Notes
- Manual bag placement is used in the standard working process.
- Feeding can be matched with vacuum conveying, screw conveying, or belt conveying according to site conditions.
- Automatic bag feeding, conveying, sealing, and coding systems can be configured for higher automation requirements.
- Model selection should be based on material type, target bag weight, output requirement, and plant layout.
- Detailed specifications, drawings, and configuration options are available upon request.
Technical Parameters And Main Performance Indicators
Model Comparison Table
| Model | Weighing Range | Capacity | Accuracy | Air Source Pressure | Air Consumption |
|---|---|---|---|---|---|
| DCS-500 | 0.5-1.5 T | 20-60 bags/hour | Plus or minus 0.5 | 0.5 MPa | 0.35-0.5 m3/min |
| DCS-1000 | 0.5-2 T | 15-25 bags/hour | Plus or minus 0.5 | 0.5 MPa | 0.3-0.6 m3/min |
| DCS-2000 | 0.5-4 T | 15-20 bags/hour | Plus or minus 0.5 | 0.5 MPa | 0.3-0.6 m3/min |
Main Structure Table
| Item | Description |
|---|---|
| Weighing Structure | Lower platform electronic weighing |
| Bag Handling | Pneumatic hook and bag clamping |
| Feeding Control | Fast and slow feeding with metering control |
| Auxiliary Function | Inflating and air return mechanism |
| Discharge Method | Belt conveyor discharge |
| Control System | PLC plus intelligent weighing instrument |
| Feeding Connection | Vacuum conveying, screw conveying, or belt conveying optional |
Working Process Summary
| Step | Description |
|---|---|
| 1 | Manual bag placement |
| 2 | Automatic bag clamping |
| 3 | Fast feeding |
| 4 | Slow feeding and fine weighing |
| 5 | Quantitative filling completed |
| 6 | Automatic bag release and discharge |
Note: Detailed layout drawings, bag size range, voltage, power, and optional configurations can be provided according to project requirements.
