LS Series Vertical Mixer

Short Description

Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Vertical Mixer, Industrial Mixing Equipment, Powder Mixing Machine
Application: Powder mixing, granule blending, raw material homogenizing and humidifying for brick and tile production, dry powder processing, feed processing, plastics, chemical, and food applications
Product Type: Vertical Screw Mixer

Back to Products
Product Detail

描述

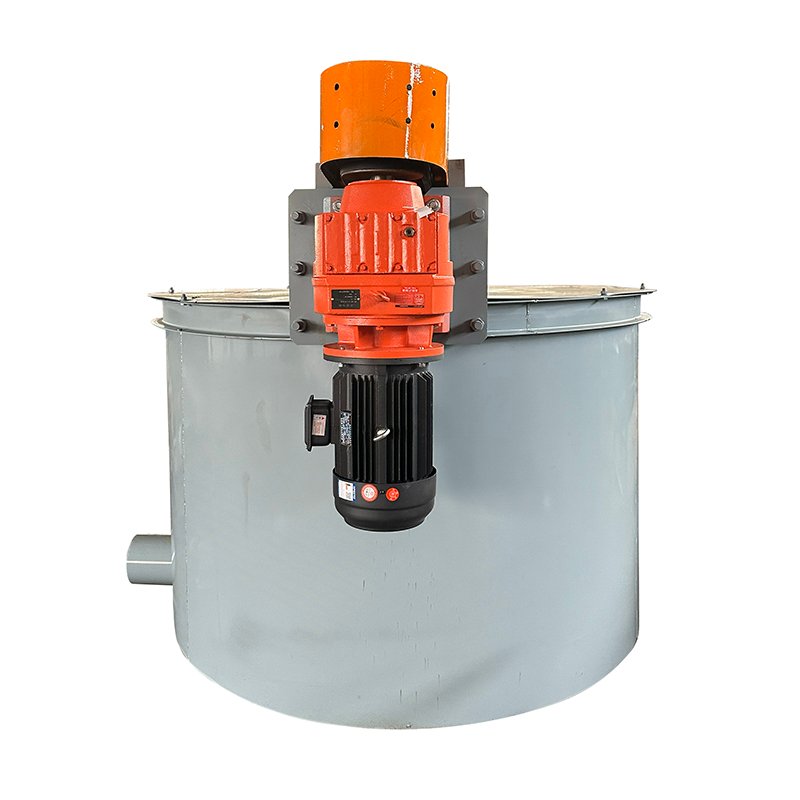

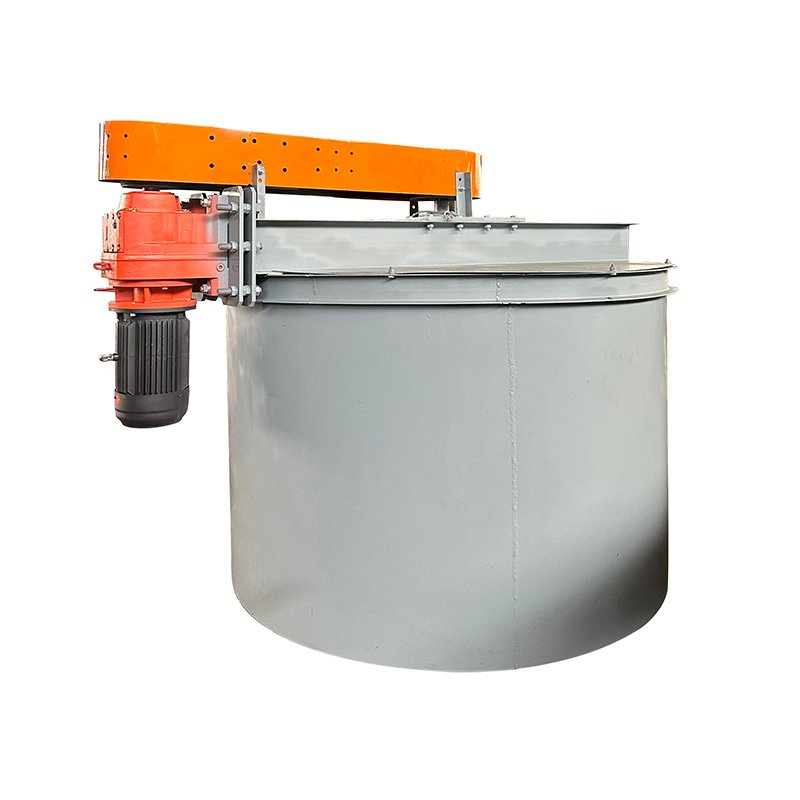

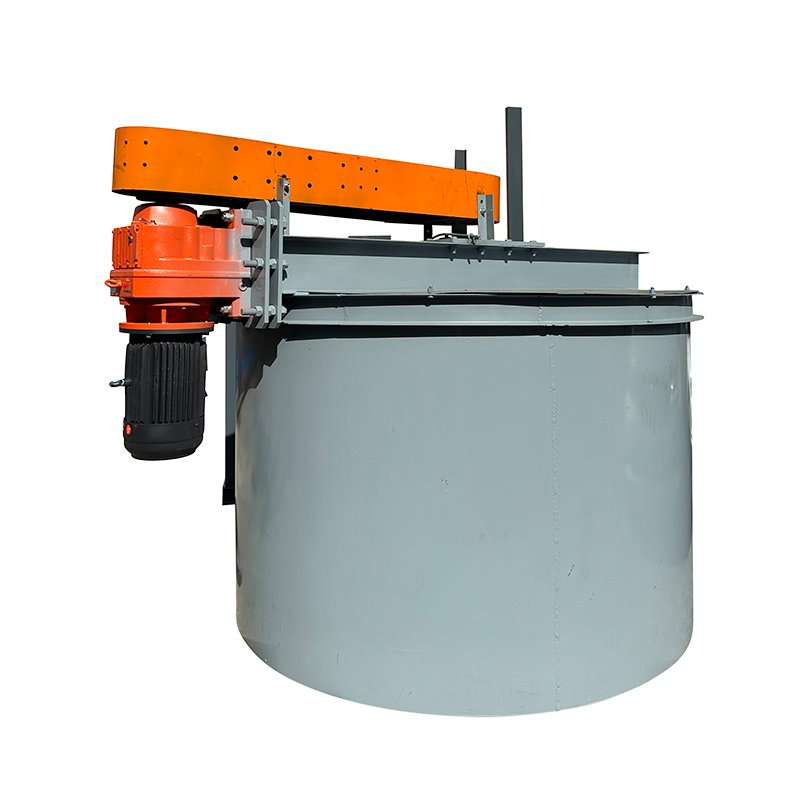

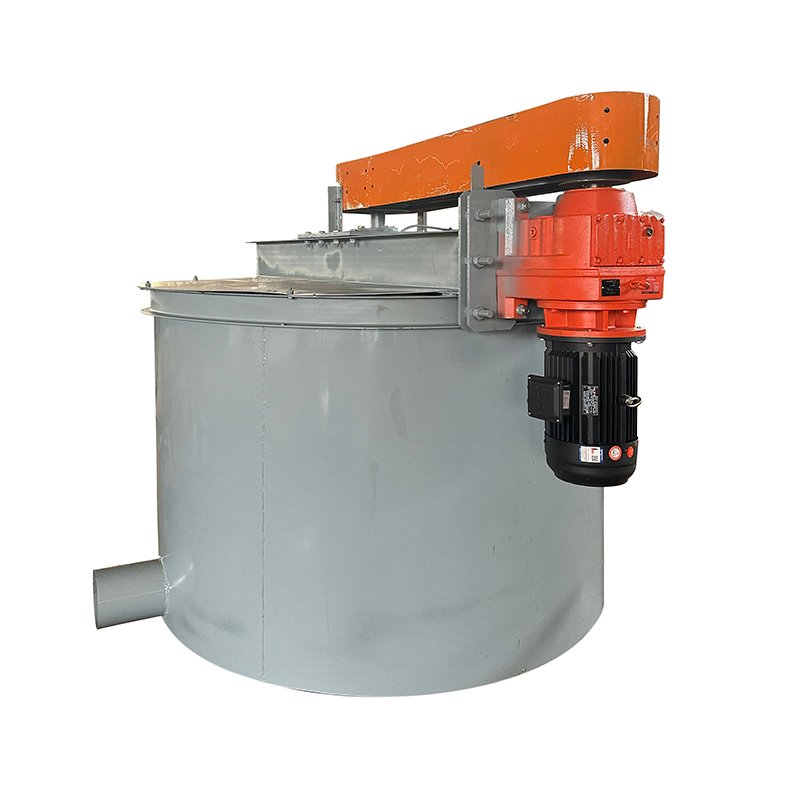

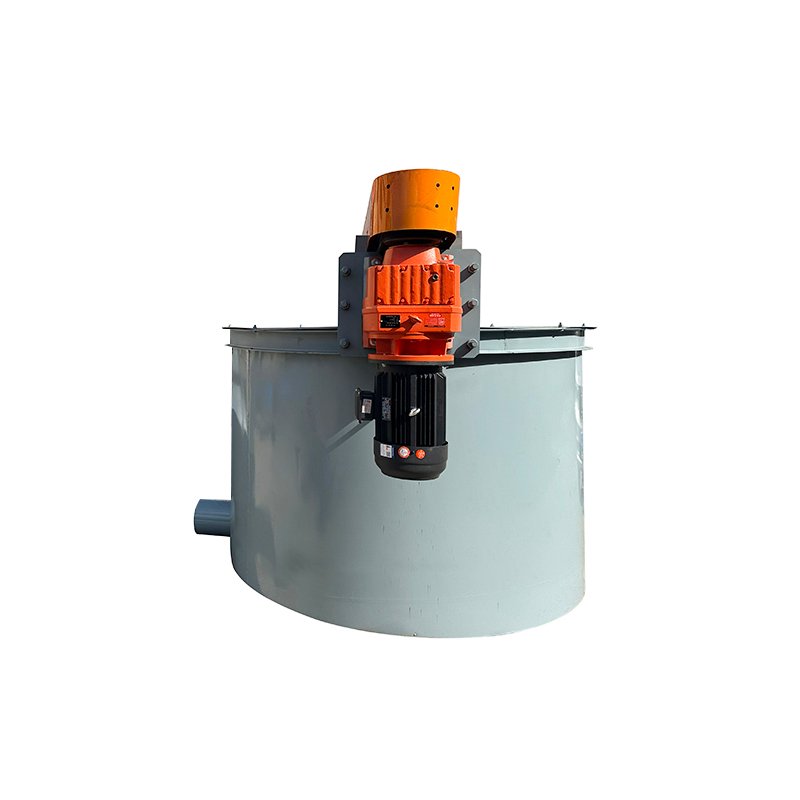

LS Series Vertical Mixer

The LS Series Vertical Mixer is designed for efficient mixing, blending, homogenizing, and humidifying of powder-based raw materials.
It is suitable for continuous production conditions requiring stable output, reliable mixing performance, and convenient maintenance.

Overview

This vertical mixer is developed for industrial raw material preparation processes. Based on the supplied information, the equipment
offers large hourly output, uniform mixing effect, high production efficiency, and suitability for continuous operation. It is used
to fully mix raw materials and water, helping improve homogenization performance in production lines that process powder and similar bulk materials.

Applications

Powder material mixing
Raw material blending with water
Homogenizing and humidifying processes
Brick and tile raw material preparation
Industrial continuous mixing lines
Bulk material pretreatment processes

Suitable materials and working conditions include

  • Powder materials
  • Materials requiring water addition during mixing
  • Raw materials requiring homogenizing treatment
  • Processes requiring stable hourly output
  • Workshops with limited installation footprint
  • Applications requiring convenient maintenance access

Technical Characteristics

High Mixing Efficiency
Designed for rapid and effective material blending with uniform mixing performance.

Low Operating Noise
Helps provide a more comfortable working environment during machine operation.

Strong Mixing Intensity
Suitable for different raw material conditions requiring thorough mixing action.

Convenient Maintenance
The vertical installation structure supports easier replacement and maintenance work.

Optional Configuration / Notes

  • Model selection should be based on required hourly output, installation space, and material characteristics.
  • Detailed electrical configuration, voltage, and control options are available upon request.
  • Please contact us for detailed specifications and customization requirements.

Technical Parameters And Main Performance Indicators

Model Motor Power (kW) Speed (r/min) Dimensions (mm) Hourly Output (kg)
ZT-300 2.2 350 1100 × 1900 300
ZT-500 3 350 1200 × 2350 500
ZT-1000 4 350 1500 × 2650 1000
ZT-1500 5.5 350 1700 × 3200 1500
ZT-2000 5.5 350 1750 × 3350 2000
ZT-3000 7.5 350 2100 × 3750 3000
ZT-5000 11 350 2430 × 4350 5000
