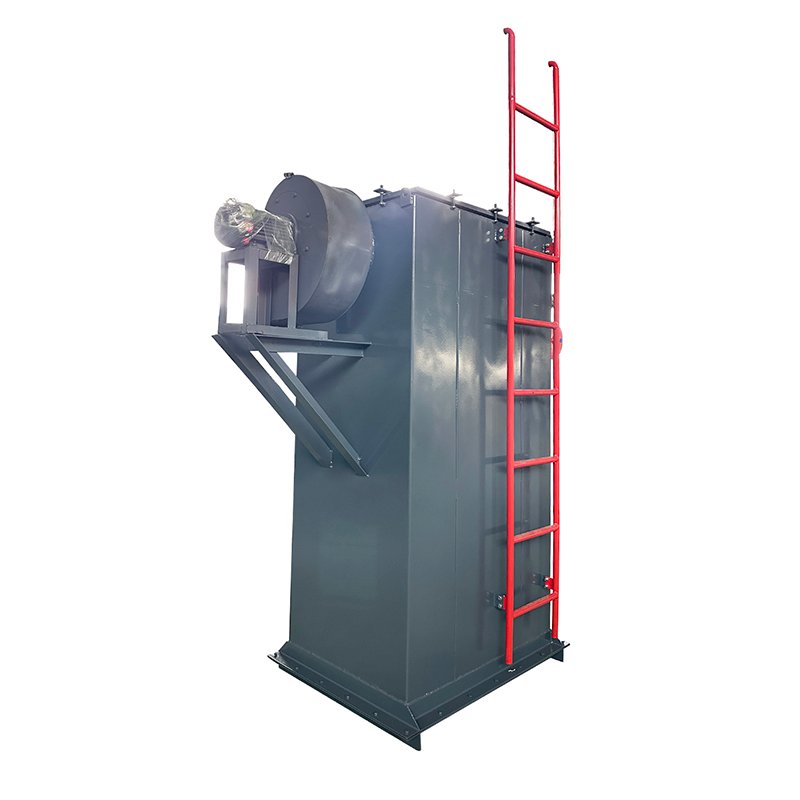

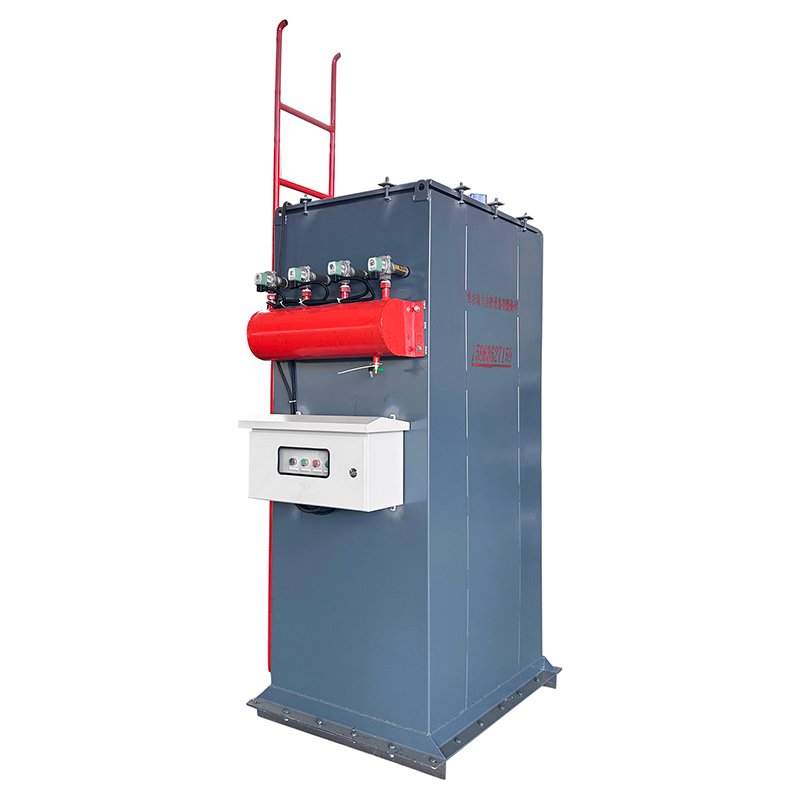

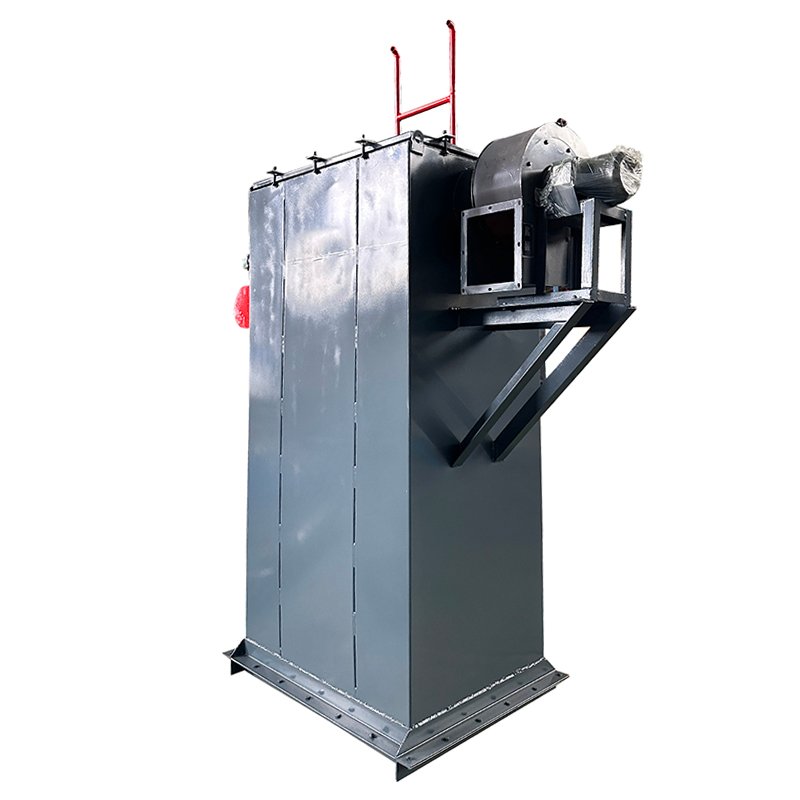

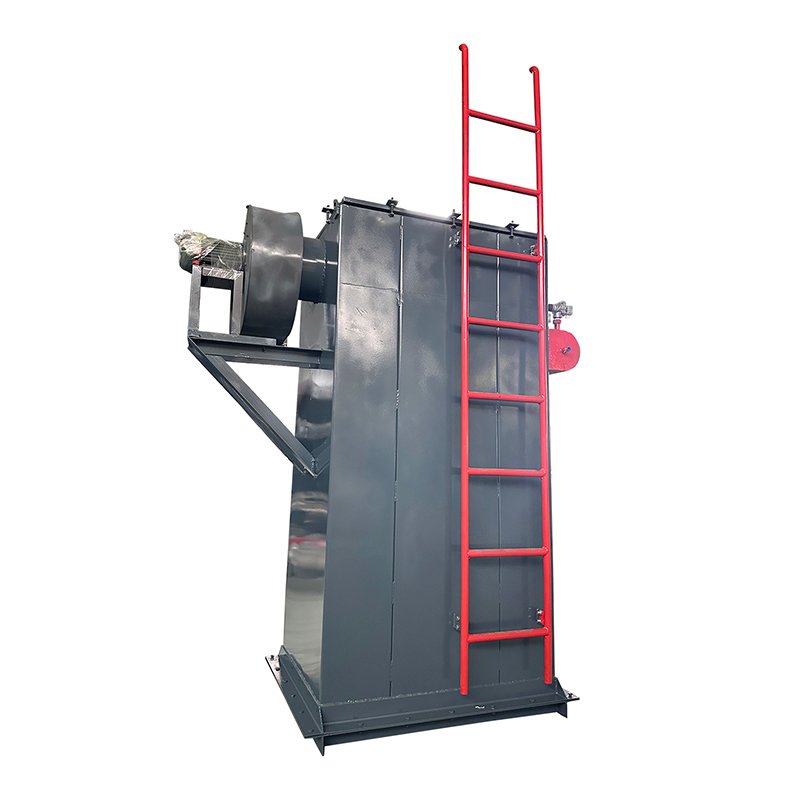

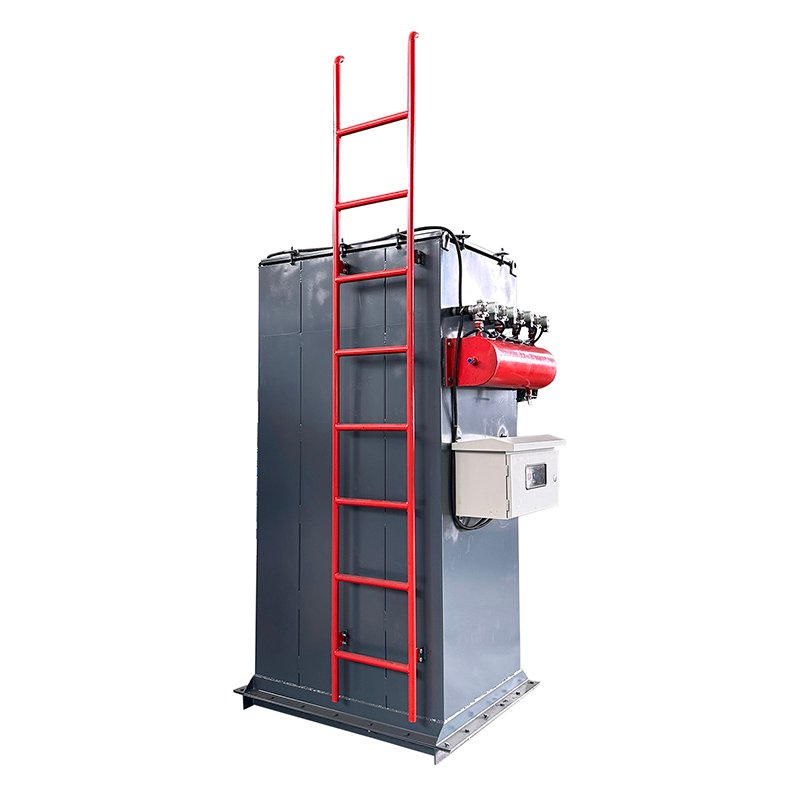

MC-II Pulse Bag Dust Collector

Short Description

Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Pulse Bag Dust Collectors
Application: Dust filtration and collection for powder handling, air pollution control, and bulk material processing lines in building materials, metallurgy, power, chemical, and related industries
Product Type: Pulse baghouse dust collector

Back to Products
Product Detail

描述

Overview

The MC-II Pulse Bag Dust Collector is a high-efficiency baghouse filtration system designed for industrial dust removal applications. It combines the advantages of compartment pulse cleaning technology and is intended to improve dust collection efficiency, operating reliability, and filter bag service life while reducing maintenance workload.

Dust-laden gas enters through the inlet and passes through the hopper, where part of the coarse dust is separated by inertia and falls directly into the hopper. The gas then enters the filter bag chamber, where dust is captured on the outer surface of the bags and cleaned air exits through the upper chamber and outlet.

Applications

  • Building material plants
  • Metallurgy processing lines
  • Power industry dust control systems
  • Chemical industry powder handling systems
  • Cement and powder processing lines
  • High dust concentration gas treatment systems
  • Industrial material conveying and storage dust removal points

Suitable Materials and Working Conditions Include

  • Powder process gas streams
  • High dust concentration gas up to the source-stated level
  • Dry industrial dust collection applications
  • Conventional temperature working conditions up to 130 degrees C
  • High temperature applications up to 210 degrees C
  • Ultra-high temperature applications up to 300 degrees C
  • Acidic or alkaline gas conditions with suitable filter media and anti-corrosion treatment
  • Processes requiring continuous operation during cleaning cycles

Technical Characteristics

  • Online pulse cleaning technology designed to reduce dust re-entrainment during cleaning
  • Compartment pulse blowing structure with broad application range
  • Filter bag self-lock sealing device for convenient installation and removal
  • Improved sealing performance between filter bag and housing
  • Top-opening maintenance door for bag replacement and servicing
  • PLC cleaning control with reliable operation and strong anti-interference capability
  • Microcomputer-based automatic control with adjustable operating parameters
  • Double-layer insulation structure for neat appearance, good heat preservation, and condensation resistance
  • Capable of handling high dust concentration without a separate first-stage collector in the source example

Optional Configuration / Notes

  • Cleaning control can be configured by timer mode or differential pressure mode.
  • Temperature versions include normal temperature, high temperature, and ultra-high temperature configurations.
  • Acid- and alkali-resistant filter media can be used for corrosive gas conditions.
  • Additional cooling measures can be matched for special process conditions.
  • Top-opening maintenance requires adequate service space at site.
  • Discharge can be configured through double-layer butterfly valve or air-lock screw conveyor according to process arrangement.
  • Final model selection should be based on gas volume, dust concentration, operating temperature, and installation layout.

Technical Parameters And Main Performance Indicators

Main Technical Parameters

Model Filter Area Dust Concentration Filter Velocity Air Volume Efficiency Overall Dimensions Weight
MC-II-24 18 m2 Less than 15 g/m3 0.8-2 2160-4320 99.5% 1190 x 1678 x 3667 mm 1133 kg
MC-II-36 27 m2 Less than 15 g/m3 0.8-2 3240-6480 99.5% 1490 x 1678 x 3667 mm 1485 kg
MC-II-48 36 m2 Less than 15 g/m3 0.8-2 4320-8640 99.5% 189 x 1678 x 3667 mm 1495 kg
MC-II-60 45 m2 Less than 15 g/m3 0.8-2 5400-10800 99.5% 2290 x 1678 x 3667 mm 1730 kg
MC-II-72 54 m2 Less than 15 g/m3 0.8-2 8640-17280 99.5% 2690 x 1678 x 3667 mm 1950 kg
MC-II-84 63 m2 Less than 15 g/m3 0.8-2 7560-15720 99.5% 3090 x 1678 x 3667 mm 2230 kg
MC-II-96 72 m2 Less than 15 g/m3 0.8-2 8640-17280 99.5% 3690 x 1678 x 3667 mm 1730 kg
MC-II-120 99 m2 Less than 15 g/m3 0.8-2 10800-21640 99.5% 4290 x 1678 x 3667 mm 1730 kg

Cleaning and Control Reference

Item Description
Cleaning Method Pulse jet cleaning by chamber sequence
Control Method PLC control
Cleaning Logic Option 1 Timer-based sequential chamber cleaning
Cleaning Logic Option 2 Differential pressure based cleaning by pressure transmitter signal
Dust Discharge Double-layer butterfly valve or air-lock screw conveyor
Maintenance Access Top opening door structure

Temperature Configuration Reference

Version Working Temperature
Normal Temperature Type Up to 130 degrees C
High Temperature Type Up to 210 degrees C
Ultra-High Temperature Type Up to 300 degrees C

Note: Some source table values and naming details should be confirmed against the final approved specification before publication or quotation.
