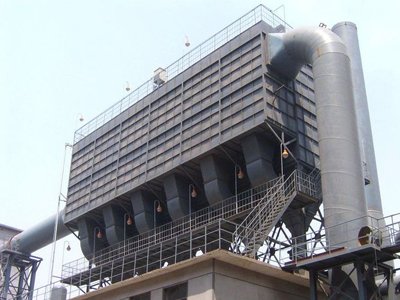

PPC Air Box Pulse Bag Dust Collector
Short Description
Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Pulse Bag Dust Collectors
Application: Industrial dust filtration and collection for high dust concentration gas streams in cement, power, metallurgy, chemical, and bulk material processing lines
Product Type: Air box pulse bag dust collector
描述
Overview
The PPC Air Box Pulse Bag Dust Collector is a high-efficiency baghouse system designed for industrial dust removal under high dust concentration working conditions. It combines the advantages of compartment pulse cleaning technology and is suitable for continuous filtration service in powder processing, conveying, storage, and air pollution control systems.
Dust-laden gas enters through the inlet and passes through the hopper, where part of the coarse particles are separated by inertia and fall directly into the hopper. The gas then enters the bag filtration chamber, where dust is captured on the outer surface of the filter bags and cleaned air passes through the upper chamber and outlet. Pulse jet cleaning is performed by chamber sequence to maintain stable operating resistance and continuous system performance.
Applications
- Cement crushing systems
- Cement packing systems
- Silo top dust collection points
- Clinker cooler exhaust dust collection
- Grinding mill dust collection systems
- Large boiler flue gas dust removal in power plants
- Metallurgy and chemical process dust control
- High dust concentration powder handling lines
Suitable Materials and Working Conditions Include
- Dry industrial dust
- Cement powder and mineral dust
- High dust concentration process gas
- Powder system gas with inlet dust concentration up to the source-stated level
- Continuous industrial filtration duty
- Normal temperature working conditions
- High temperature and ultra-high temperature gas conditions with suitable filter media
- Corrosive gas conditions with acid- and alkali-resistant filter media and anti-corrosion treatment
Technical Characteristics
- High handling capacity for large dust collection projects
- High dust collection efficiency and long filter bag service life
- High filter area loading capacity
- Online pulse cleaning technology to reduce dust re-entrainment during cleaning
- Compartment pulse cleaning structure with broad application range
- Self-lock filter bag sealing device for convenient installation and removal
- Improved sealing performance between bags and housing
- Top opening maintenance design for bag replacement and servicing
- Double-layer integral insulation structure with good condensation resistance
- PLC cleaning control with strong anti-interference capability
- Microcomputer automatic control with adjustable operating parameters
- Suitable for continuous filtration during automatic cleaning cycles
Optional Configuration / Notes
- Cleaning control can be configured by timer mode or differential pressure mode.
- Temperature versions include normal temperature up to 130 degrees C, high temperature up to 210 degrees C, and ultra-high temperature up to 300 degrees C.
- Acid- and alkali-resistant filter media can be used for corrosive gas conditions.
- Additional cooling measures can be matched for special process conditions.
- Dust discharge can be configured through double-layer butterfly valve or air-lock screw conveyor.
- Top opening maintenance requires adequate service space above the collector.
- Final model selection should be based on gas volume, dust concentration, process temperature, filter media selection, and installation layout.
Technical Parameters And Main Performance Indicators
Series Reference Parameters
| Item | Specification |
|---|---|
| Inlet Dust Concentration | Less than 1000 g/Nm3 in the source-stated high concentration application |
| Filtration Velocity | 1.2-2.0 m/min |
| Operating Resistance | 1470-1770 Pa |
| Cleaning Method | Compartment pulse jet cleaning |
| Control Method | PLC and microcomputer automatic control |
| Temperature Versions | Normal temperature / High temperature / Ultra-high temperature |
Main Model Table
| Model | Filter Area | Dust Concentration | Filter Velocity | Air Volume | Bag Quantity | Weight |
|---|---|---|---|---|---|---|
| PPC-32-3 | 93 m2 | Less than 1000 g/m3 | 1.2-2.0 m/min | 6900 m3/h | 96 | 2880 kg |
| PPC-32-4 | 124 m2 | Source shared value | Source shared value | 8930 m3/h | 128 | 4080 kg |
| PPC-32-5 | 155 m2 | Source shared value | Source shared value | 11160 m3/h | 160 | 5280 kg |
| PPC-32-6 | 186 m2 | Source shared value | Source shared value | 13390 m3/h | 192 | 6480 kg |
| PPC-64-4 | 248 m2 | Source shared value | Source shared value | 17800 m3/h | 256 | 7280 kg |
| PPC-64-5 | 310 m2 | Source shared value | Source shared value | 22300 m3/h | 320 | 9960 kg |
| PPC-64-6 | 372 m2 | Source shared value | Source shared value | 26700 m3/h | 384 | 11640 kg |
| PPC-64-7 | 434 m2 | Source shared value | Source shared value | 31200 m3/h | 448 | 13320 kg |
| PPC-64-8 | To be confirmed | Source shared value | Source shared value | 35700 m3/h | 512 | 15000 kg |
| PPC-96-4 | 372 m2 | Source shared value | Source shared value | 26800 m3/h | 384 | 10452 kg |
| PPC-96-5 | 465 m2 | Source shared value | Source shared value | 33400 m3/h | 480 | 12120 kg |
| PPC-96-6 | 557 m2 | Source shared value | Source shared value | 40100 m3/h | 576 | 14880 kg |
| PPC-96-7 | 650 m2 | Source shared value | Source shared value | 46800 m3/h | 672 | 16920 kg |
| PPC-96-8 | 744 m2 | Source shared value | Source shared value | 53510 m3/h | 768 | 19810 kg |
| PPC-96-9 | 836 m2 | Source shared value | Source shared value | 60100 m3/h | 864 | 21240 kg |
Note: Some series data in the source table appear as shared values across multiple models, and the filter area for model PPC-64-8 should be confirmed against the final approved specification sheet.
