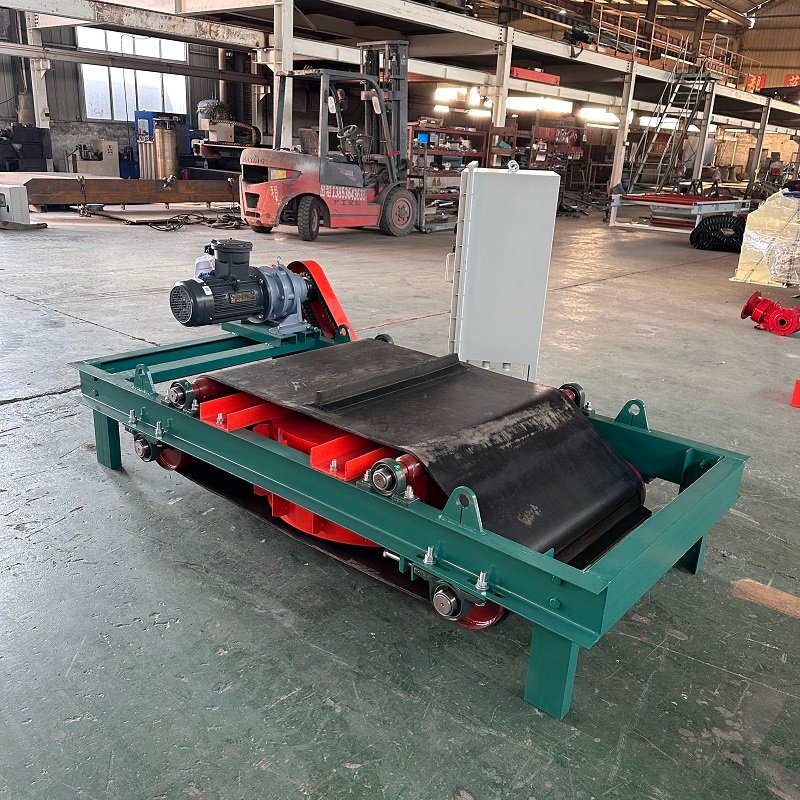

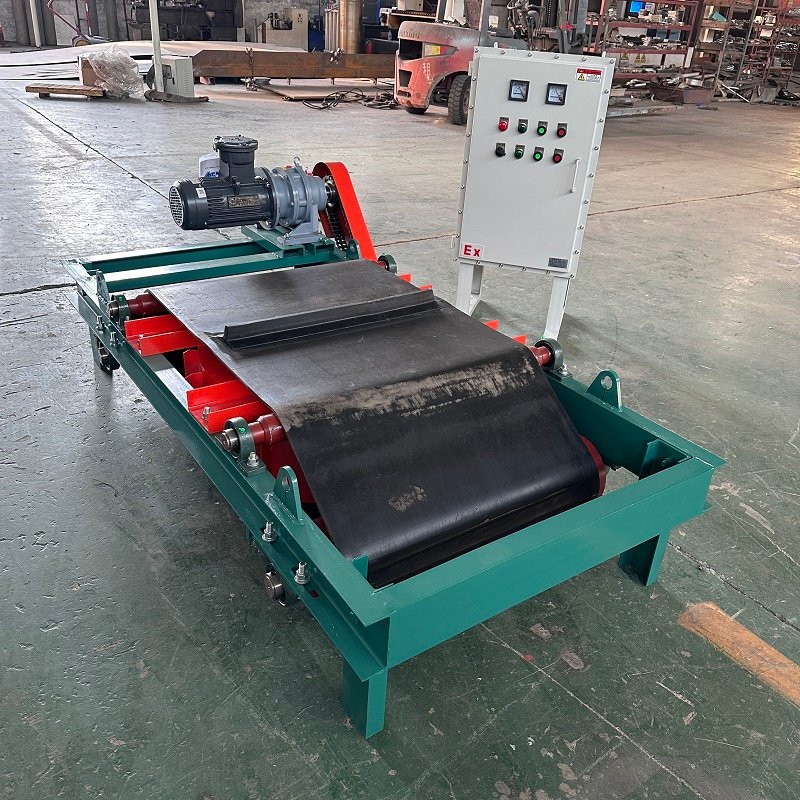

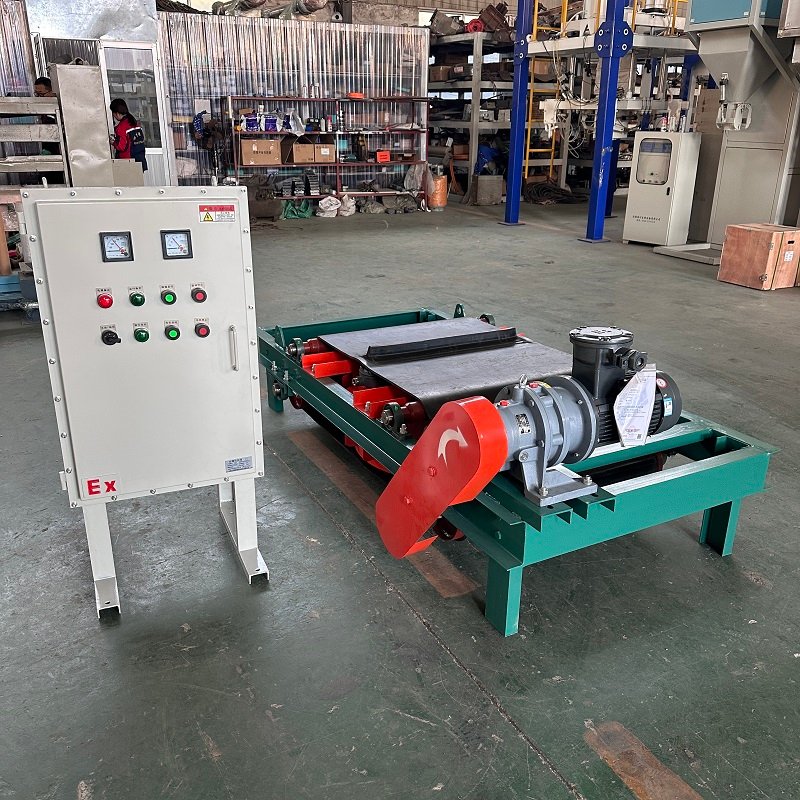

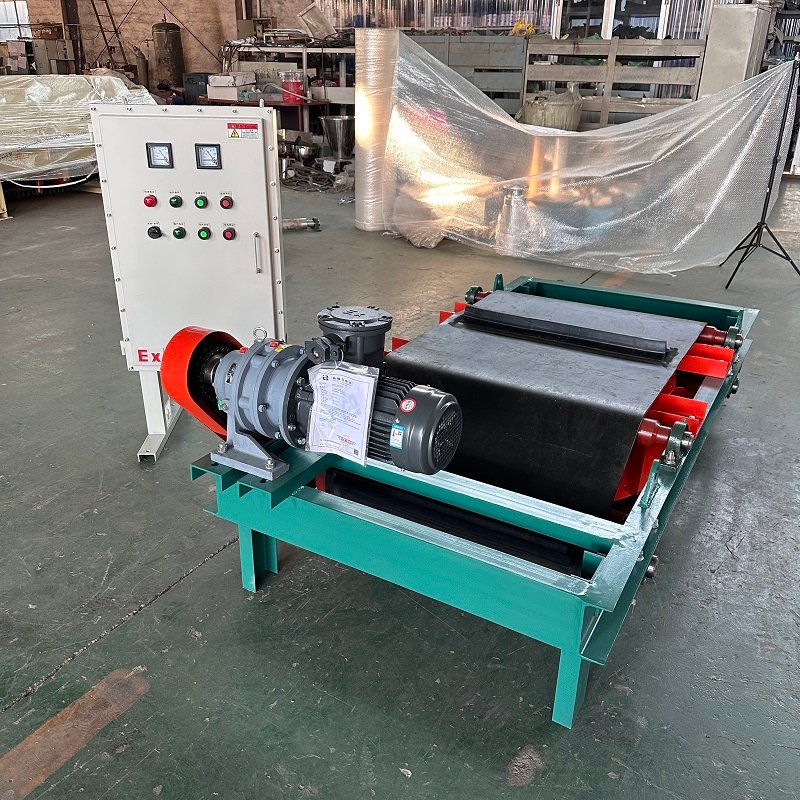

RCDD(T) Series Dry Self-Cleaning Electromagnetic Iron Separator
Short Description
Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Electromagnetic Separators
Application: Suitable for automatic tramp iron removal from non-magnetic powder and lump materials in mining, cement, coal, aggregate, and other conveyor-based bulk material handling systems.
描述
RCDD(T) Series Dry Self-Cleaning Electromagnetic Iron Separator
Overview
The RCDD(T) Series Dry Self-Cleaning Electromagnetic Iron Separator is used to continuously remove tramp iron from conveyed bulk materials. It is especially suitable for powder and lump non-magnetic materials where automatic iron removal is required to protect downstream equipment and improve product purity.
This series adopts a special resin-cast coil structure, self-cooling fully sealed design, and self-cleaning discharge mechanism, allowing stable long-term operation in demanding working conditions. The equipment offers strong magnetic attraction, deep magnetic penetration, and dependable performance in dusty, wet, and corrosive environments.
Applications
- Mining and mineral processing plants
- Quarrying and aggregate production lines
- Cement and building material plants
- Thermal power plants
- Metallurgy and bulk material conveying systems
- Recycling and solid waste processing lines
Suitable materials and working conditions include:
- Powdery non-magnetic materials
- Lump non-magnetic materials
- Ore conveying lines
- Aggregate and crushed stone handling
- Raw material belts requiring tramp iron removal
Technical Characteristics
- Dry type self-cleaning electromagnetic iron separator
- Designed for continuous automatic iron removal
- Strong magnetic penetration depth
- High suction force for ferrous contaminants
- Fully sealed internal structure
- Special resin-cast coil design
- Self-cooling construction
- Dustproof, rainproof, and corrosion-resistant
- Suitable for harsh industrial environments
- Compatible with different conveyor belt widths and suspension heights
Optional Configuration / Notes
- The series includes standard RCDD models and super-strong RCDD-T variants.
- T-series variants are available in T1 / T2 / T3 levels with different magnetic intensities.
- Model selection should be based on conveyor belt width, material layer thickness, suspension height, required magnetic intensity, site environment, and duty cycle.
Technical Parameters And Main Performance Indicators
Standard RCDD Series
| Model | Conveyor Width (mm) | Rated Suspension Height h (mm) | Material Thickness ≤ (mm) | Magnetic Intensity ≥ (mT) | Drive Power ≤ (kW) | Belt Speed ≤ (m/s) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| RCDD-5 | 500 | 100 | 100 | 60 | 1.5 | 2.5 | 950 |
| RCDD-6 | 600 | 120 | 120 | 60 | 1.5 | 2.5 | 1380 |
| RCDD-6.5 | 650 | 150 | 150 | 70 | 2.2 | 2.5 | 1490 |
| RCDD-8 | 800 | 200 | 200 | 70 | 2.2 | 2.5 | 1770 |
| RCDD-10 | 1000 | 250 | 250 | 70 | 3.0 | 2.5 | 2380 |
| RCDD-12 | 1200 | 300 | 300 | 70 | 3.0 | 2.5 | 3170 |
| RCDD-14 | 1400 | 350 | 350 | 70 | 4.0 | 2.5 | 4800 |
| RCDD-16 | 1600 | 400 | 400 | 70 | 4.0 | 2.5 | 6300 |
| RCDD-18 | 1800 | 450 | 450 | 70 | 5.5 | 2.5 | 7800 |
Standard RCDD Series Dimension Table
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| RCDD-5 | 2020 | 1040 | 775 | 750 | 1000 |
| RCDD-6 | 2140 | 1100 | 800 | 800 | 1100 |
| RCDD-6.5 | 2275 | 1190 | 820 | 888 | 1250 |
| RCDD-8 | 2540 | 1480 | 865 | 1030 | 1350 |
| RCDD-10 | 2750 | 1635 | 940 | 1230 | 1400 |
| RCDD-12 | 3000 | 1800 | 1010 | 1505 | 1700 |
| RCDD-14 | 3500 | 2050 | 1050 | 1674 | 2000 |
| RCDD-16 | 3900 | 2450 | 1180 | 1874 | 2350 |
| RCDD-18 | 4400 | 2850 | 1290 | 2100 | 2800 |
RCDD-T Super-Strong Series Model Table
| Base Model | Type | Conveyor Width (mm) | Rated Suspension Height h (mm) | Excitation Power (kW) | Drive Motor Power (kW) | Magnetic Intensity at Rated Height (mT) | Main Size A×B×C (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| RCDD-6 | T1 | 650 | 200 | 4.0 | 1.5 | 90 | 2400×1150×650 | 800 |
| T2 | 6.0 | 2.2 | 120 | 2600×1150×680 | 1200 | |||
| T3 | 10.0 | 2.2 | 150 | 2800×1150×700 | 1600 | |||
| RCDD-8 | T1 | 800 | 250 | 5.3 | 2.2 | 90 | 2710×1215×730 | 1520 |
| T2 | 7.5 | 2.2 | 120 | 2710×1215×760 | 1910 | |||
| T3 | 11.5 | 3.0 | 150 | 2710×1215×800 | 2380 | |||
| RCDD-10 | T1 | 1000 | 300 | 7.1 | 3.0 | 90 | 3000×1460×810 | 2320 |
| T2 | 9.0 | 3.0 | 120 | 3000×1460×860 | 2980 | |||
| T3 | 14.0 | 4.0 | 150 | 3000×1460×920 | 3450 | |||
| RCDD-12 | T1 | 1200 | 350 | 9.0 | 4.0 | 90 | 3450×1770×940 | 3240 |
| T2 | 13.5 | 4.0 | 120 | 3450×1770×980 | 4250 | |||
| T3 | 16.0 | 5.5 | 150 | 3450×1770×1020 | 5260 | |||
| RCDD-14 | T1 | 1400 | 400 | 11.5 | 4.0 | 90 | 3850×1900×1060 | 4530 |
| T2 | 15.0 | 5.5 | 120 | 3850×1900×1100 | 6120 | |||
| T3 | 19.5 | 5.5 | 150 | 3850×1900×1160 | 7150 | |||
| RCDD-16 | T1 | 1600 | 450 | 18.0 | 5.5 | 90 | 4070×2200×1150 | 5980 |
| T2 | 22.0 | 5.5 | 120 | 4070×2200×1190 | 7200 | |||
| T3 | 26.5 | 7.5 | 150 | 4070×2200×1240 | 9350 | |||
| RCDD-18 | T1 | 1800 | 500 | 17.5 | 7.5 | 90 | 4550×2450×1310 | 8050 |
| T2 | 25.0 | 7.5 | 120 | 4550×2450×1360 | 9500 | |||
| T3 | 32.5 | 11.0 | 150 | 4550×2450×1410 | 11200 | |||
| RCDD-20 | T1 | 2000 | 550 | 22.0 | 7.5 | 90 | 5020×2600×1440 | 9800 |
| T2 | 29.5 | 11.0 | 120 | 5020×2600×1500 | 12500 | |||
| T3 | 36.0 | 11.0 | 150 | 5020×2600×1590 | 16300 | |||
| RCDD-22 | T1 | 2200 | 600 | 26.0 | 11.0 | 90 | 5200×2700×1600 | 13000 |
| T2 | 33.5 | 11.0 | 120 | 5400×2700×1650 | 14500 | |||
| T3 | 41.0 | 15.0 | 150 | 5500×2700×1700 | 19000 | |||
| RCDD-24 | T1 | 2400 | 650 | 31.0 | 15.0 | 90 | 5700×2900×1750 | 15000 |
| T2 | 38.5 | 15.0 | 120 | 6000×2900×1800 | 18000 | |||
| T3 | 46.5 | 15.0 | 150 | 6200×2900×1850 | 22000 |
Note: Detailed model-by-model parameters for RCDD-T variants can be published in a separate specification table or provided upon request.
