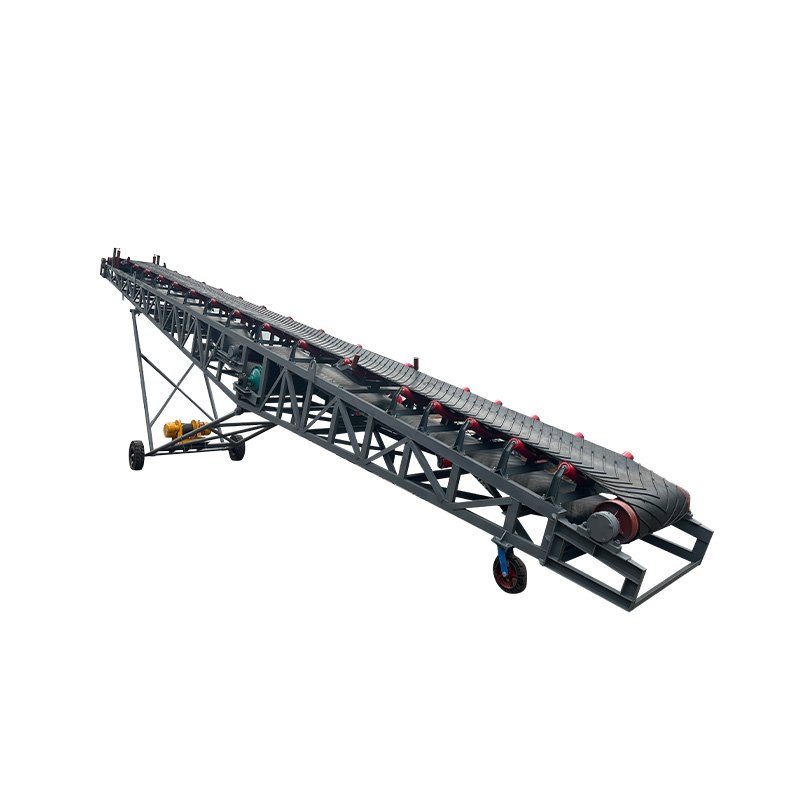

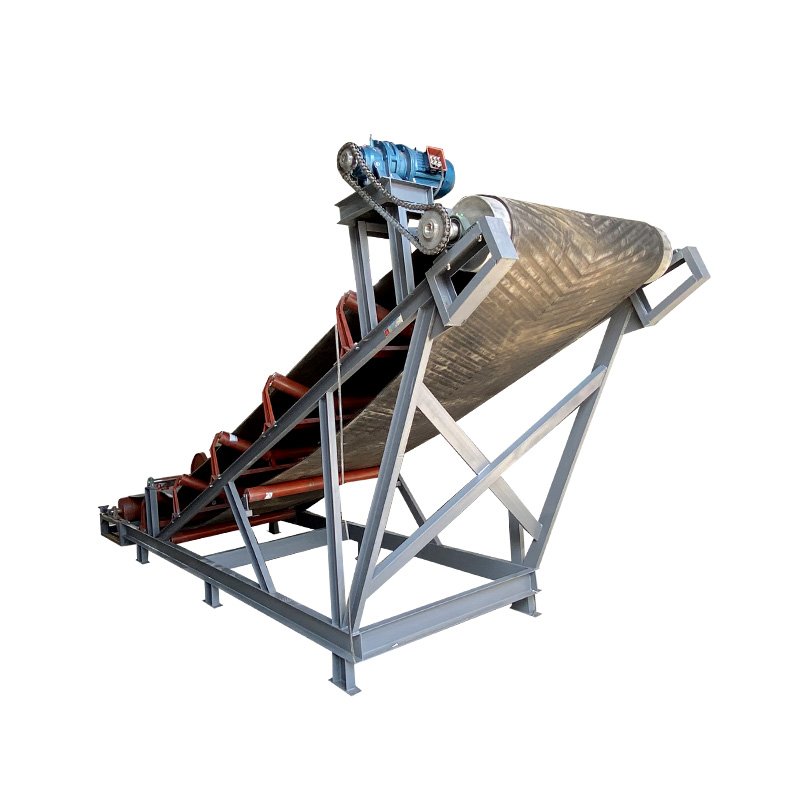

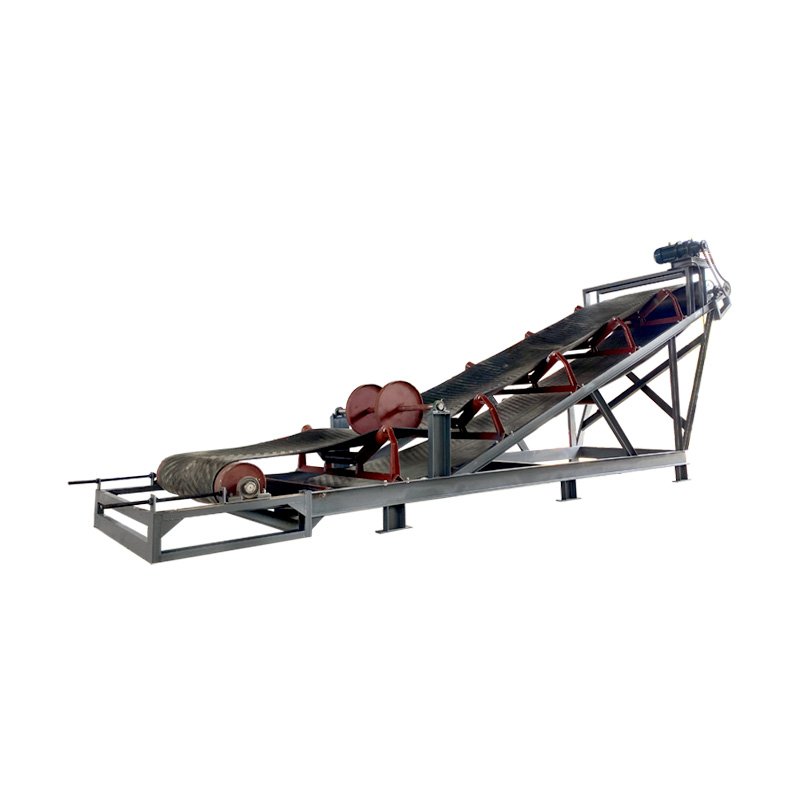

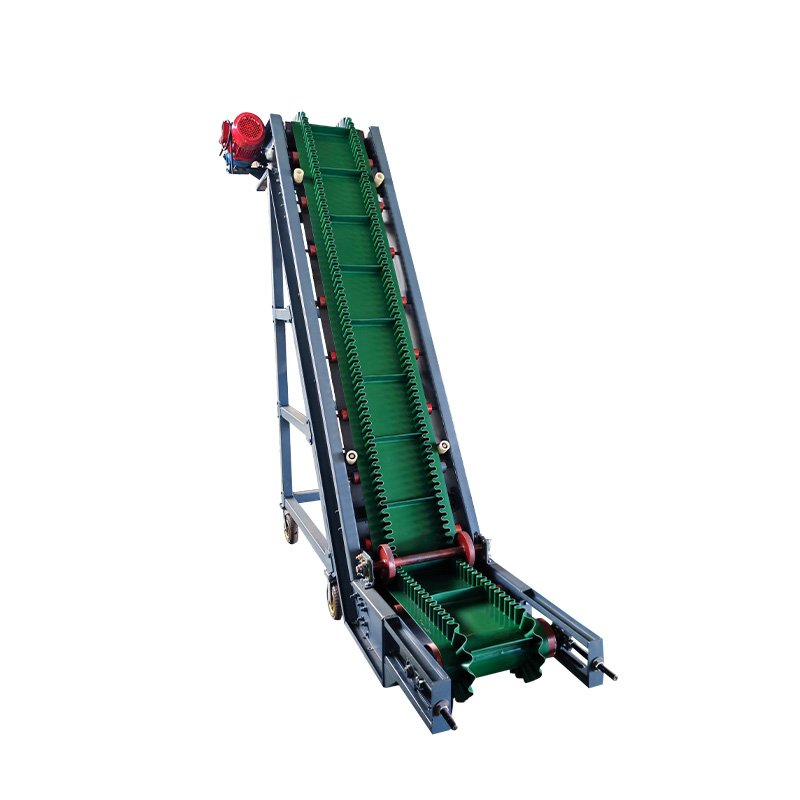

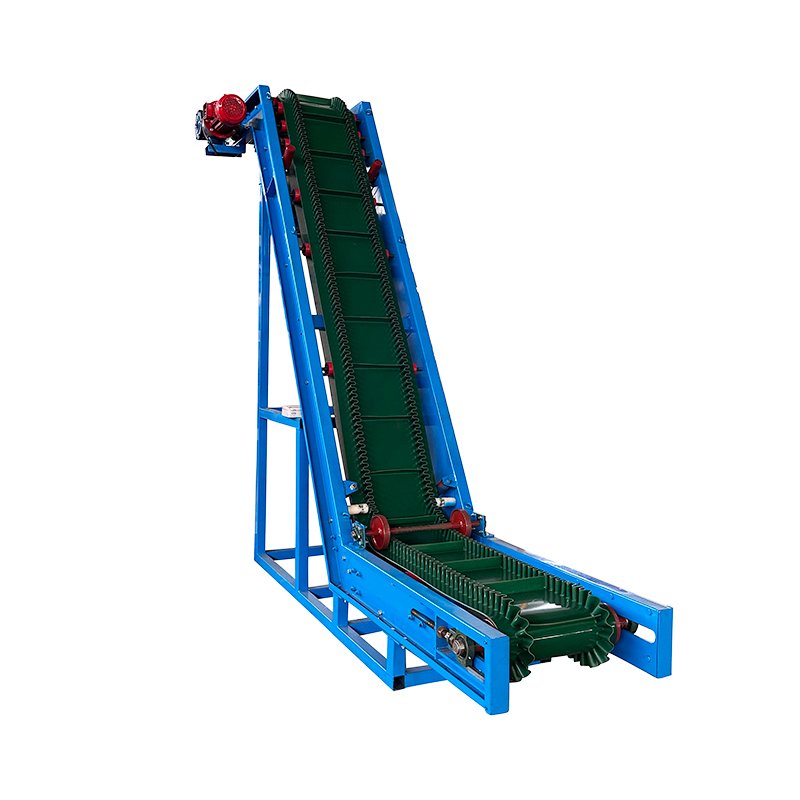

Steep Angle Belt Conveyor
Short Description
Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Steep Angle Conveyors
Application: Continuous conveying of coal, ore, gravel, grain, and other bulk materials at steep inclinations in mining, ports, building materials, and related industries
Product Type: Corrugated sidewall belt conveyor
描述
Overview
The Steep Angle Belt Conveyor is designed for continuous conveying of bulk materials at large inclinations. By using a corrugated sidewall conveyor belt combined with transverse cleats to form a hopper-type structure, the system can transport materials efficiently on steep slopes where conventional flat belt conveyors are limited.
The conveyor belt circulates through the drive drum and is supported by idler sets for stable running. This structure helps solve the problem of conveying materials on steep slopes or in near-vertical lifting conditions, while maintaining large conveying capacity, reliable operation, and reduced floor space.
Applications
- Coal conveying systems
- Mining and ore transport lines
- Building material handling systems
- Port bulk material conveying
- Vertical lifting and steep-slope conveying projects
- Bulk handling lines for gravel, sand, and aggregates
- Grain and agricultural bulk material transport
Suitable Materials and Working Conditions Include
- Coal
- Ore
- Gravel
- Sand and aggregates
- Grain and similar bulk materials
- Large inclination conveying applications
- Continuous duty conveying lines
- Sites with limited installation space
- Processes requiring vertical lifting or steep angle transfer
Technical Characteristics
- Corrugated sidewall belt and transverse cleat structure for hopper-type conveying
- Suitable for steep angle conveying and special near-vertical conveying conditions
- Large conveying capacity with efficient continuous material transport
- Sealed conveying structure helps reduce material spillage and dust emission
- Compact layout helps reduce floor space requirement
- Simple structure for convenient maintenance and low operating cost
- Reliable and stable running performance with low noise and low energy consumption
- Can be arranged in curved layouts to adapt to complex site conditions
- Deep trough idler arrangement supports stable belt operation
- Suitable as an alternative to traditional lifting equipment in many applications
Optional Configuration / Notes
- Typical conveying inclination is about 20 to 45 degrees, while certain special configurations can be designed for up to 90 degrees.
- Model selection should be based on required capacity, material characteristics, conveying angle, lifting height, and site layout.
- Sidewall height, cleat height, belt width, drum diameter, and drive arrangement should be selected according to the actual conveying requirement.
- Drive arrangements can be configured according to installation condition and required power range.
- Detailed capacity, conveyor length, motor power, and structural drawings are available upon request.
Technical Parameters And Main Performance Indicators
Belt Structure Reference
| Base Belt Width | Sidewall Height Options | Cleat Height Options | Typical Application Position |
|---|---|---|---|
| 500 mm | 80 / 100 / 120 mm | 75 / 90 / 110 mm | Small and medium capacity conveying |
| 650 mm | 100 / 120 / 160 mm | 90 / 110 / 150 mm | Medium capacity conveying |
| 800 mm | 120 / 160 / 200 mm | 110 / 150 / 180 mm | Medium and large capacity conveying |
| 1000 mm | 160 / 200 / 240 mm | 150 / 180 / 220 mm | Large capacity conveying |
| 1200 mm | 200 / 240 / 300 mm | 180 / 220 / 280 mm | Large capacity and high lift conveying |
| 1400 mm | 240 / 300 / 400 mm | 220 / 280 / 360 mm | Heavy-duty and large volume conveying |
Pulley and Idler Reference
| Base Belt Width | Drive Drum Diameter Options | Bending Drum Diameter Options | Idler Diameter |
|---|---|---|---|
| 500 mm | 400 / 500 mm | 400 mm | 89 mm |
| 650 mm | 400 / 500 / 630 mm | 400 / 500 mm | 89 mm |
| 800 mm | 500 / 630 / 800 mm | 400 / 500 / 630 mm | 89 mm |
| 1000 mm | 630 / 800 / 1000 mm | 500 / 630 / 800 mm | 89 mm |
| 1200 mm | 630 / 800 / 1000 / 1250 mm | 500 / 630 / 800 / 1000 mm | 108 mm |
| 1400 mm | 800 / 1000 / 1250 / 1400 mm | 800 / 1000 / 1250 / 1400 mm | 108 mm |
Operating Reference
| Item | Specification |
|---|---|
| Typical Belt Speed Options | 0.8 / 1.0 / 1.25 / 1.6 / 2.0 / 2.5 / 3.15 / 4.0 m/s |
| Nominal Inclination Range | 0 to 90 degrees |
| Typical Working Inclination | 20 to 45 degrees |
| Special Maximum Inclination | Up to 90 degrees |
| Basic Structure | Steep angle design, corrugated sidewall belt, and deep trough idler arrangement |
| Drive Arrangement Type I | Electric drum drive |
| Drive Arrangement Type II | Y series motor with V-belt and shaft-mounted reducer |
| Drive Arrangement Type III | Motor plus coupling plus reducer plus drive drum |
Note: Final conveyor configuration should be confirmed according to required throughput, conveying angle, lifting height, material characteristics, and site layout.
