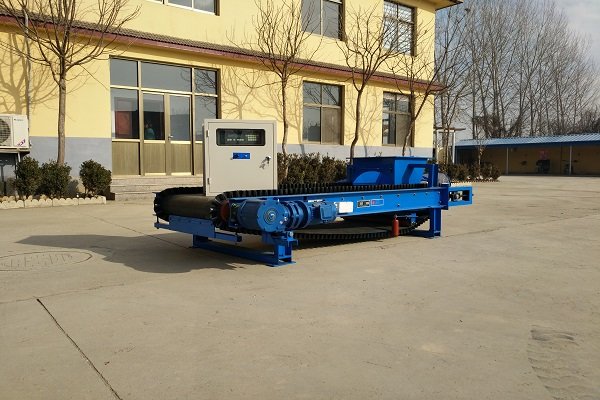

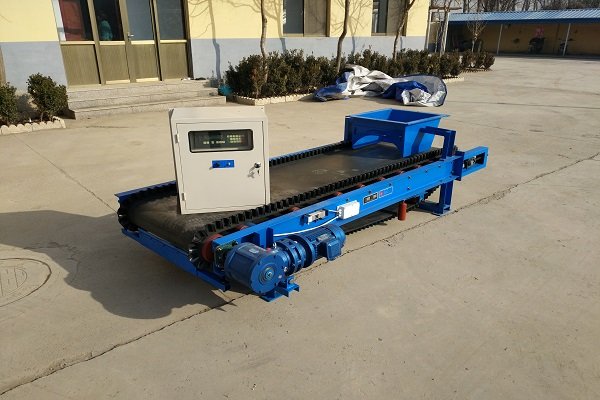

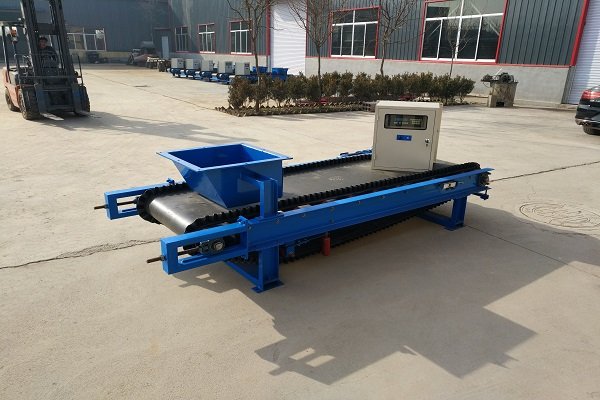

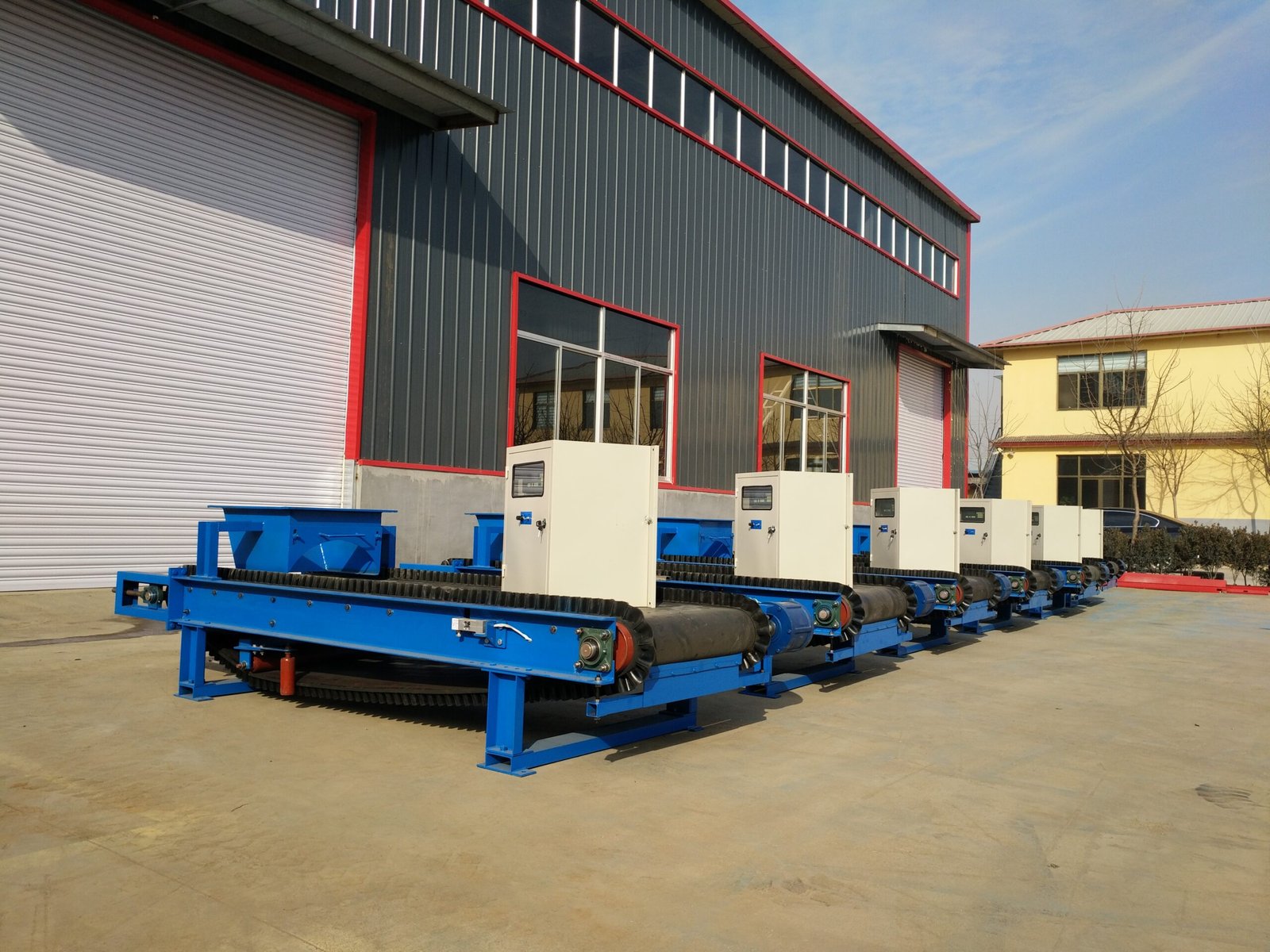

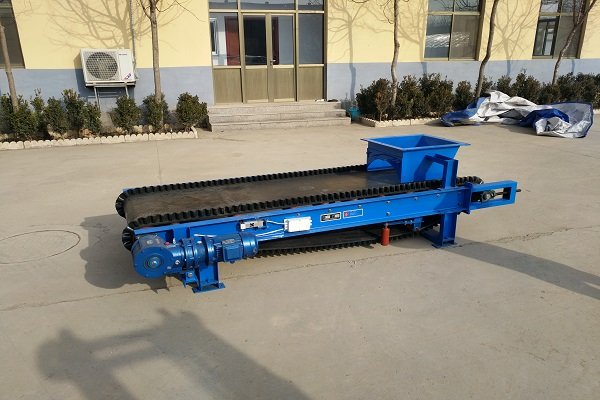

TDG Series Quantitative Belt Feeder

Short Description

Brand: RUICHUAN
Product Origin: Shandong, China
Categories: Weigh Feeders
Application: Continuous quantitative feeding and flow control for bulk materials in industrial dosing, conveying, and batching lines
Product Type: Quantitative belt feeder

Back to Products

Product Detail

描述

Overview

The TDG Series Quantitative Belt Feeder is designed for continuous weighing, feeding, and flow control of bulk materials. It receives weight signals from the material on the belt and speed signals from belt operation, then continuously compares the actual feed rate with the set value to regulate belt speed and keep material flow stable at the required output.

This equipment is suitable for industrial dosing and conveying lines that require stable feeding, continuous operation, and adjustable throughput. The series adopts a full steel frame structure and combines belt conveying, variable frequency speed regulation, weighing control, and automatic adjustment functions in one integrated feeder system.

Applications

Bulk material dosing systems
Continuous feeding lines
Industrial batching and proportioning systems
Conveying and metering lines for dry bulk materials
Production processes requiring stable feed rate control
Industrial plants handling powders, granules, and small lump materials

Suitable Materials and Working Conditions Include

Powder materials
Granular materials
Pellet materials
Small lump bulk materials
Dusty working environments
Continuous duty feeding applications
Processes requiring adjustable feed rate and flow stability

Technical Characteristics

Full steel frame structure for stable system performance
Box-type frame and side retaining plates to help reduce material spillage
Self-adjusting sealed bearings for harsh dusty environments
Variable frequency speed control with wide adjustment range
New gravity tensioning structure for stable belt tension
Automatic belt deviation correction function
High-precision load cell and frequency counting device
Effective belt slip monitoring capability
Continuous working mode
Optional extended type, enclosed type, and all stainless steel type

Optional Configuration / Notes

System accuracy: up to +/- 1.5%
Speed regulation range: 10:1
Working mode: continuous
Model code example: TDG(L,F)0800-18 indicates a quantitative feeder with 800 mm belt width and 1.8 m center distance between pulleys.
Actual model selection should be based on required feed rate, belt width, installation space, and material characteristics.
Detailed electrical configuration, control method, and layout drawing are available upon request.

Technical Parameters And Main Performance Indicators

Key Technical Indicators

Item	Specification
System Accuracy	Up to +/- 1.5%
Speed Regulation Range	10:1
Working Mode	Continuous
Optional Versions	Extended type, enclosed type, all stainless steel type

Main Technical Parameters

Model	Reference Model	Belt Width	Feed Range	Motor and Reducer	Load Cell Range	Weight
TDG(L,F)0650-18	DEL/DEM0618	650 mm	0.5-30	SBD651Y90L-4 1.1 kW / SA67***	20-70 kg	800 kg
TDG(L,F)0650-20	DEL/DEM0620	650 mm	0.5-30	SBD651Y90L-4 1.1 kW / SA67***	20-70 kg	850 kg
TDG(L,F)0800-18	DEL/DEM0818	800 mm	5-50	SBD651Y90L-4 1.1 kW / SA67***	30-100 kg	900 kg
TDG(L,F)0800-20	DEL/DEM0820	800 mm	5-50	SBD651Y90L-4 1.1 kW / SA67***	30-100 kg	950 kg
TDG(L,F)0800-18	DEL/DEM0818	800 mm	30-90	SBD651Y90L-4 1.5 kW / SA67***	30-100 kg	900 kg
TDG(L,F)0800-20	DEL/DEM0820	800 mm	30-90	SBD651Y90L-4 1.5 kW / SA67***	30-100 kg	950 kg
TDG(L,F)1000-20	DEL/DEM1020	1000 mm	50-120	SBD651Y90L-4 1.5 kW / SA77***	50-100 kg	1100 kg
TDG(L,F)1200-20	DEL/DEM1220	1200 mm	80-150	SBD651Y90L-4 2.2 kW / SA77***	50-100 kg	1290 kg
TDG(L,F)1400-20	DEL/DEM1420	1400 mm	100-200	SBD651Y90L-4 3.7 kW / SA77***	100-200 kg	1450 kg

Note: Some model details in the source image should be confirmed against the original specification sheet before final publication.
